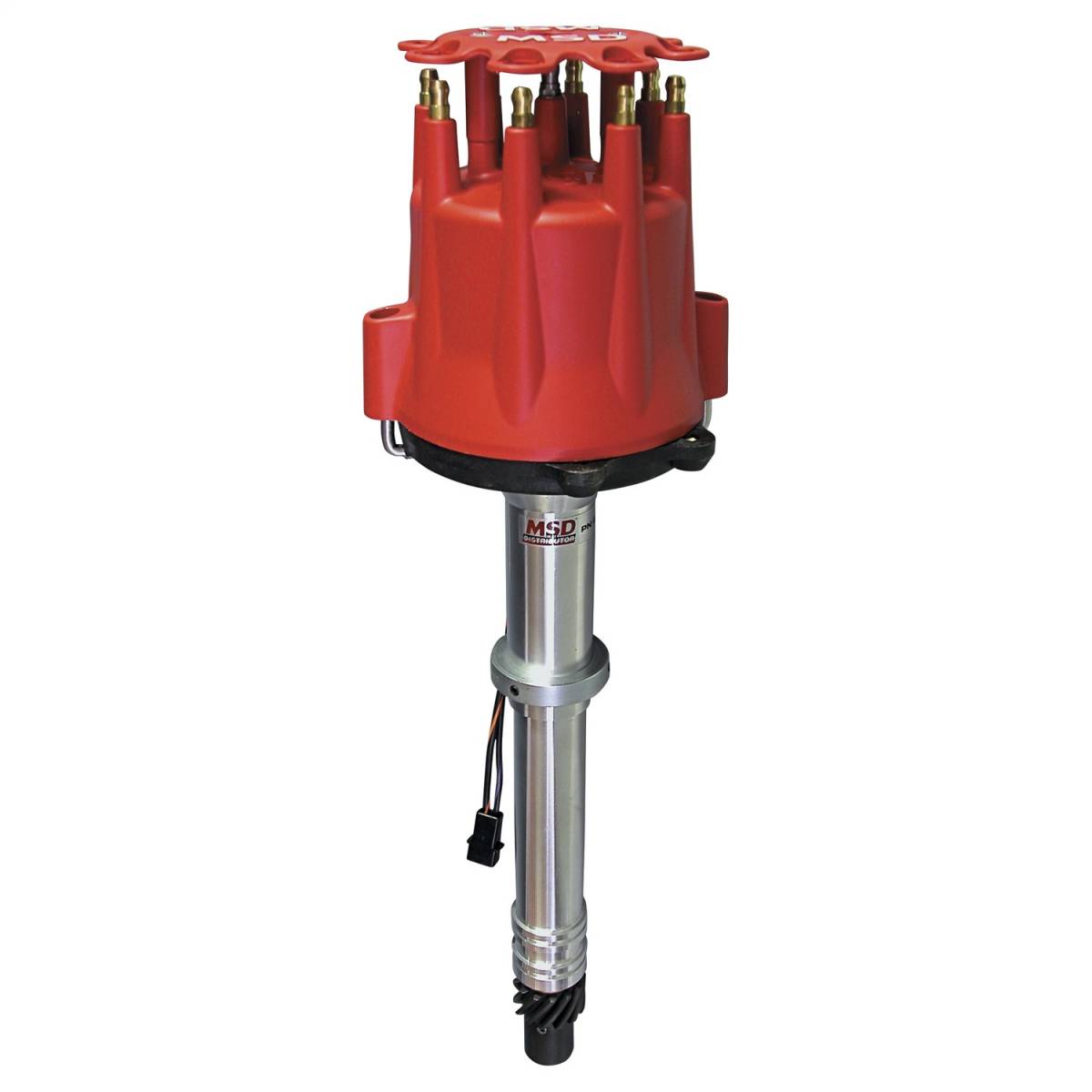

MSD Billet Distributor Incl. Cap/Race Rotor Use w/MSD 6/7/8/10 Series Ignition Extra Tall w/Slip-Collar Chevy Big Block/Small Block Engines Iron Gear 8547
Distributor
8547
- Extra tall housing design
- Advance plate and weights are fine blanked from chrome moly steel
- QPQ coated for friction reduction
- QPQ coated polished steel shaft; guided by sealed ball bearings
- For use w/Alan Root; Donovan; Merlin; and Rocket racing blocks
- Must Be Used w/An MSD Ignition Control
- Supplied w/HEI style distributor cap/rotor (accepts Cap-A-Dapts)
- O-ring seals can be installed for oil press. control (Mods only)
- Special oil tract improves lubrication to the dist./cam gear
- Nylon pads ensure smooth operation of the advance weights
- Advance weight pins are staked and tig welded to the plate
- Mech. advance assem. can be locked out for crank trigger systems
Shipping: Available To Order
Pricing:
$660.00
Description
Designed for racing blocks with maximum increased deck height such as Alan Root, Merlin and Rocket Blocks. MSD offers this Distributor with an adjustable slip collar with nearly 3 of adjustment so you can be sure the distributor is installed correctly. The distributor shares the same features of the standard Pro-Billet Chevrolet model including a ball bearing guide, long sintered lower bushing and an oil seal. To trigger the MSD Ignition a maintenance-free magnetic pick-up is secured in the billet base of the distributor. Just above this pick-up assembly is an adjustable mechanical advance assembly.
Extended Information
Country of Origin: US
Remanufactured Part: N
Emissions Code ("1" - Legal in US, "2" - Not Legal in CA, "3" - Off-Road Use Only) 3
Remanufactured Part: N
Emissions Code ("1" - Legal in US, "2" - Not Legal in CA, "3" - Off-Road Use Only) 3
Details
- 8547
- 8547
- 85132085477
- MSD
- New
Categories
Shipping Information
- Item Requires Shipping
- 5.6 lbs.
- W8.3000” x H8.3000” x L18.4000”
- Free Shipping
- Available To Order
