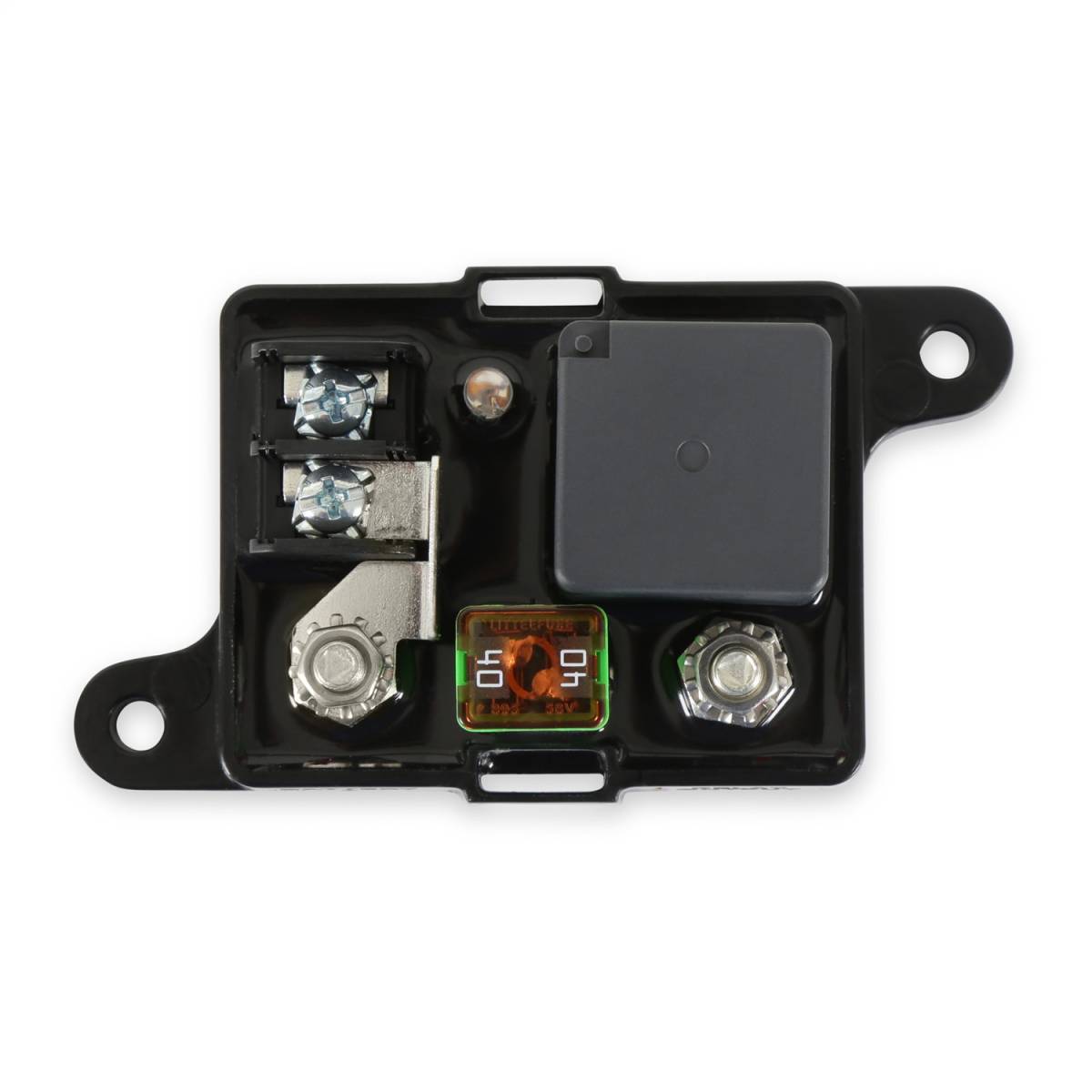

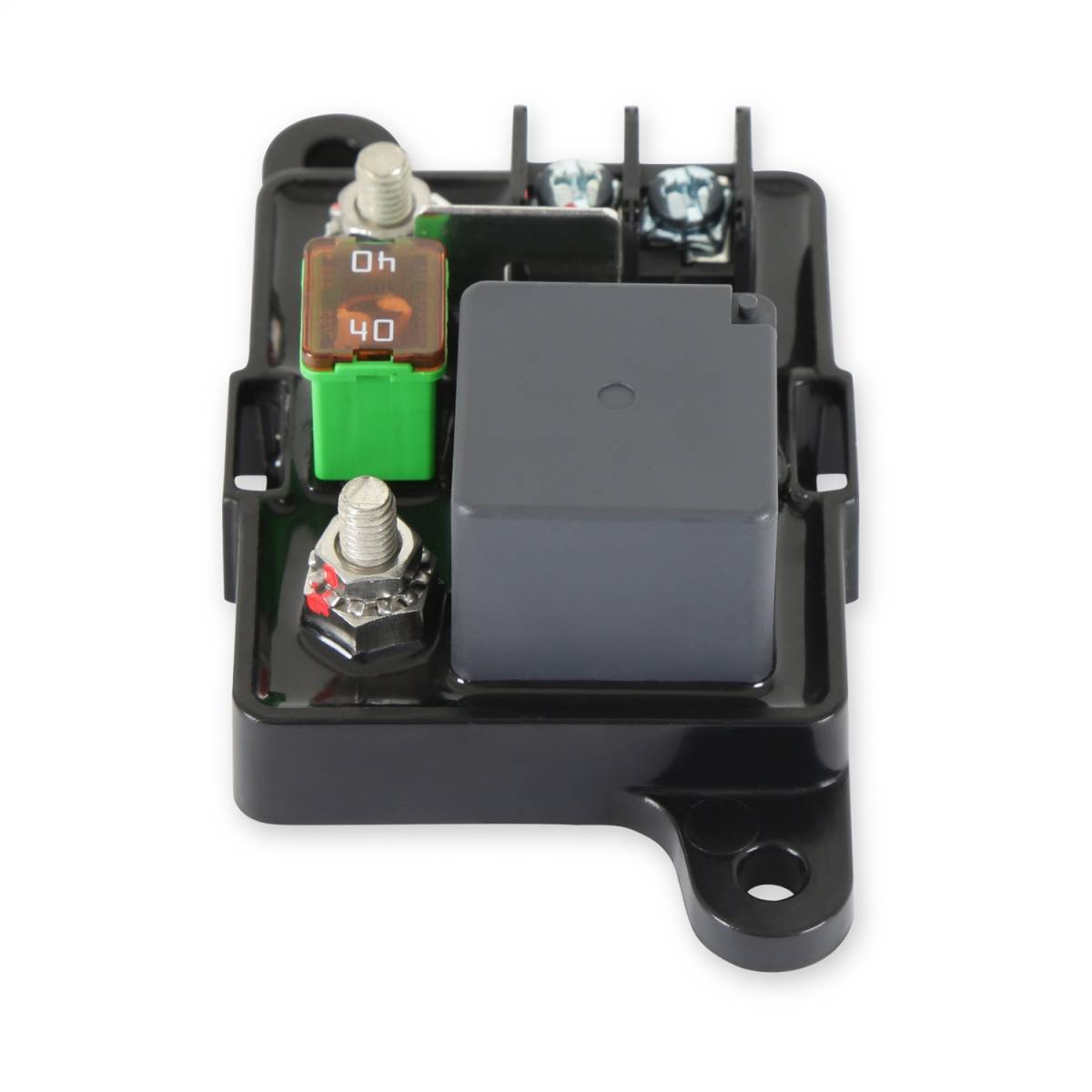

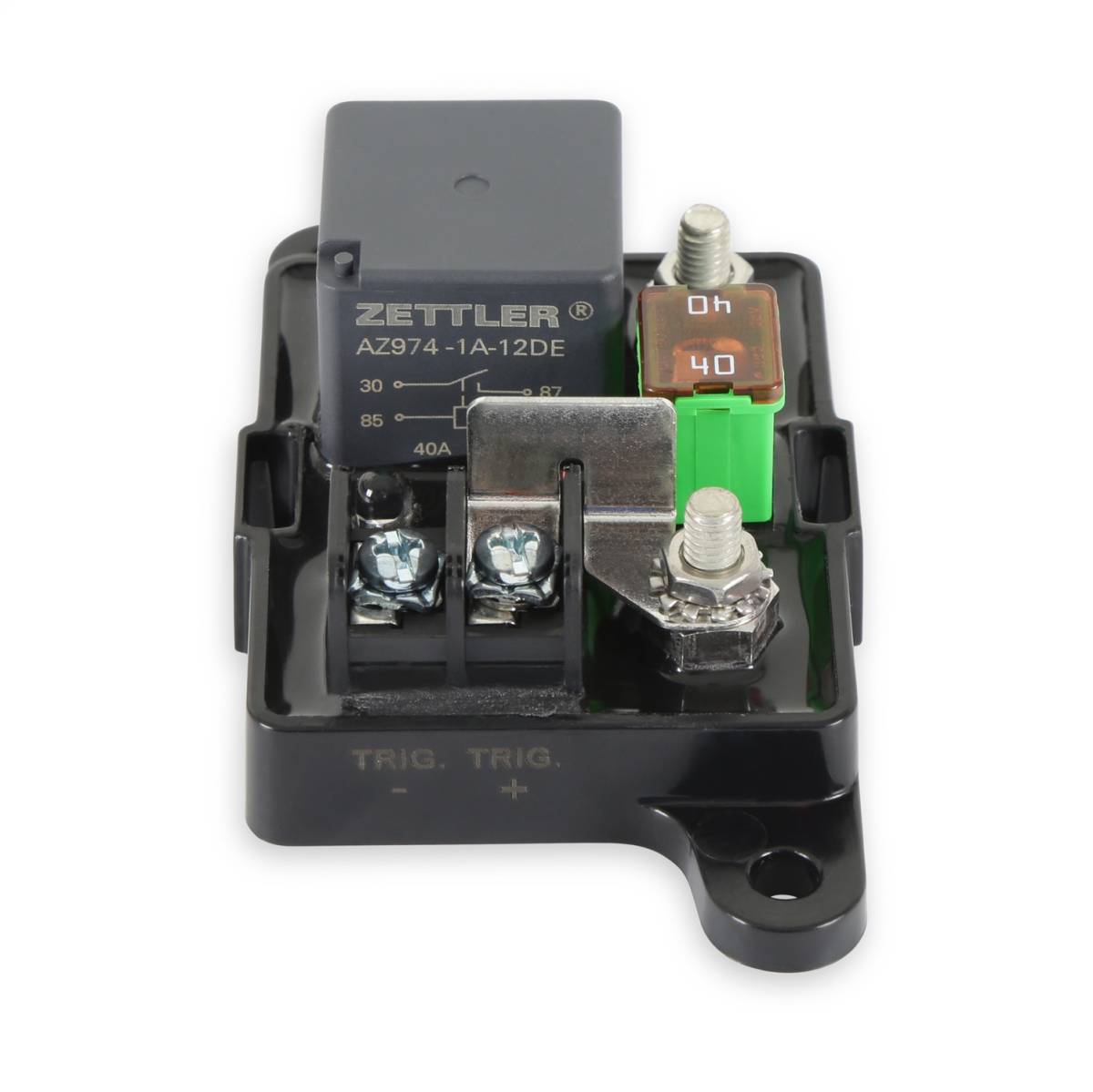

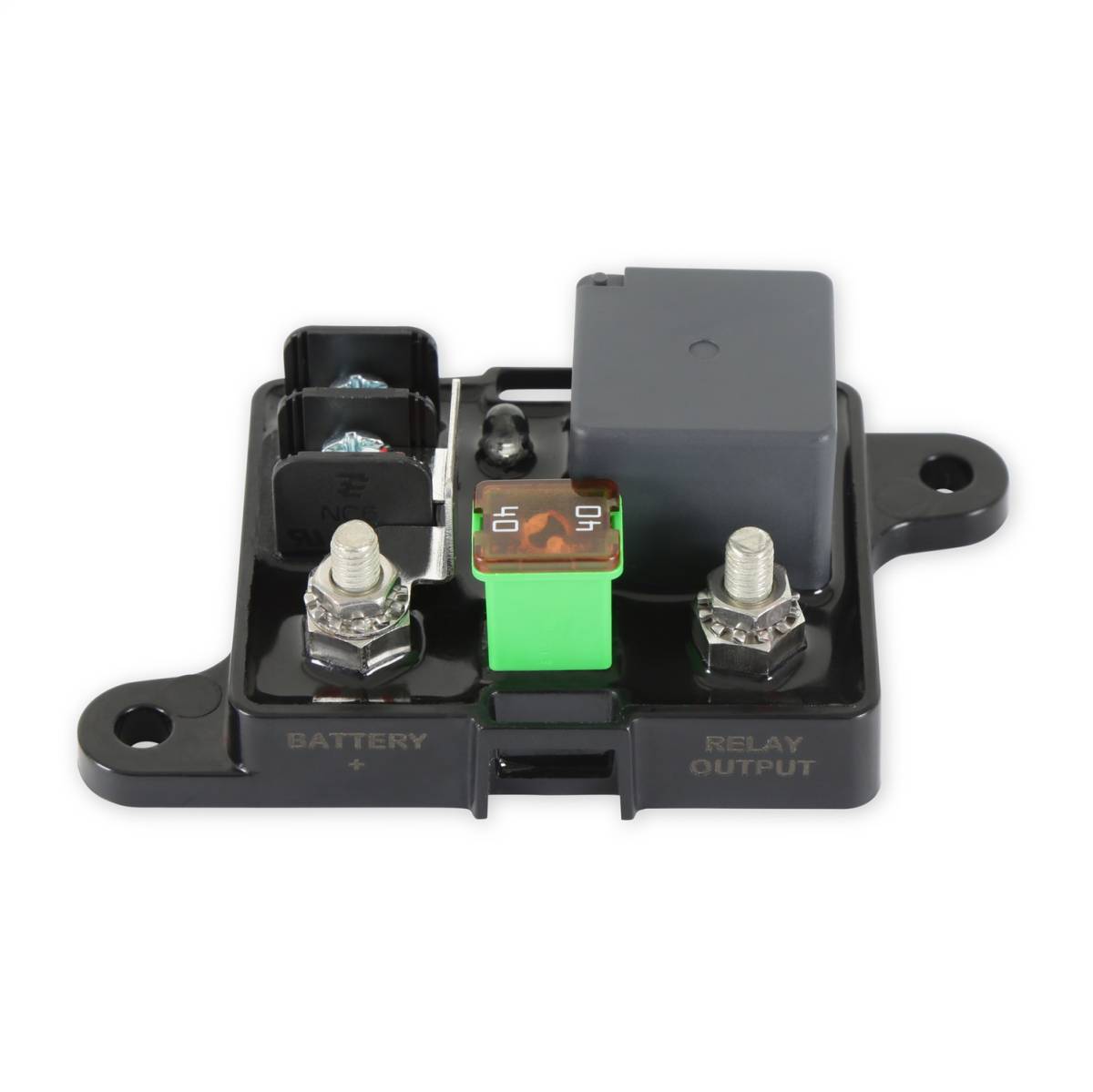

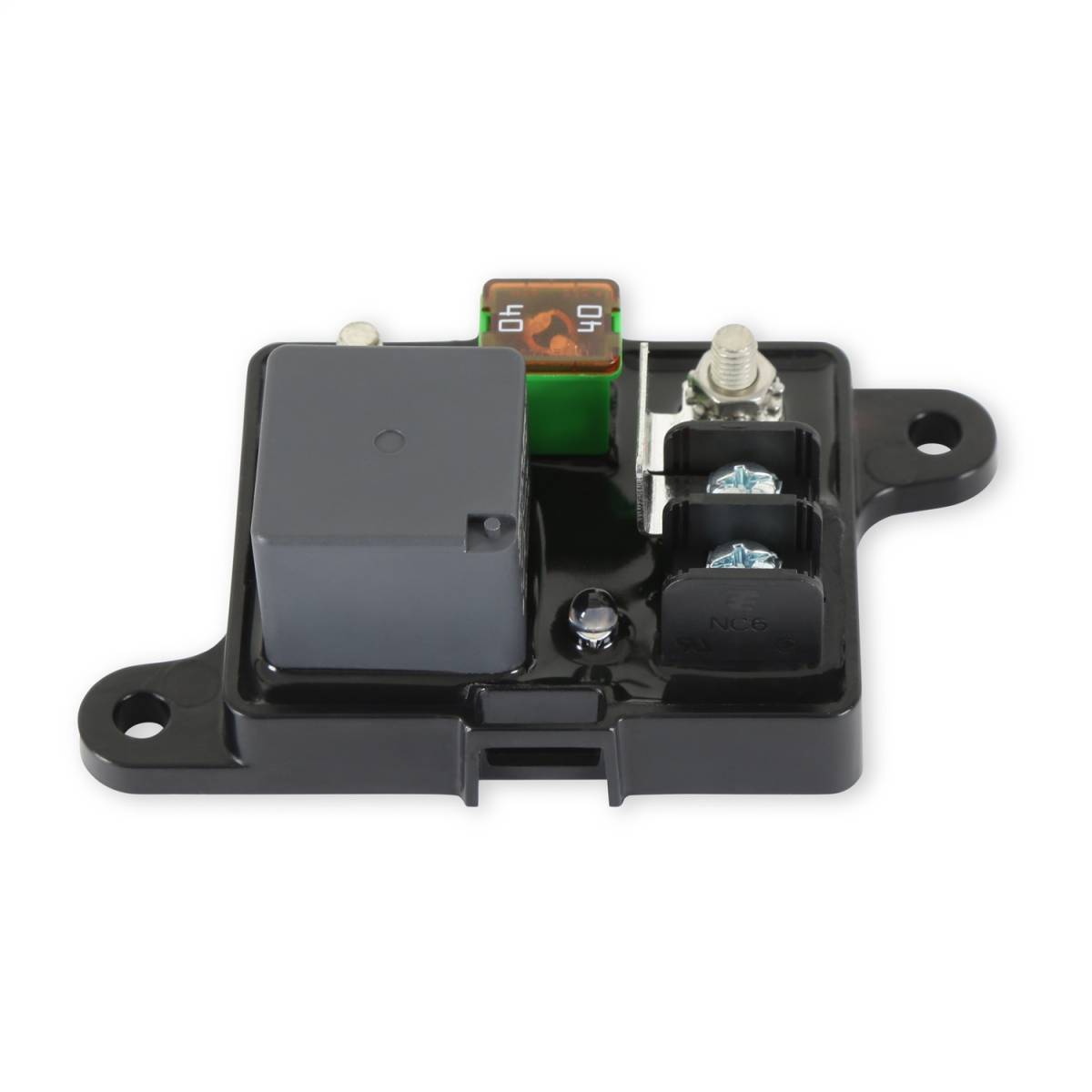

MSD MSD Relay Module 1 Channel 7V-20V Supply 40A Output 7566-1

Multi-Purpose Relay

7566-1
  • 7V To 20V Supply To Fit A Wide Variety Of Applications
  • Independent 40A Outputs; To Supply Power To Most Aftermarket Fuel Pumps And Electric Fans
  • Removable Cover For Easy Accessibility
  • Low Profile JCASE Fuses Provide Ample Protection In Case Of A Short
Shipping: Available To Order
Pricing: $58.60

Qty:

Description

MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.

Extended Information

Country of Origin:  US
Remanufactured Part:
Emissions Code ("1" - Legal in US, "2" - Not Legal in CA, "3" - Off-Road Use Only)  1

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 0.4 lbs.
  • W3.3500” x H2.4000” x L5.8000”
  • Available To Order
