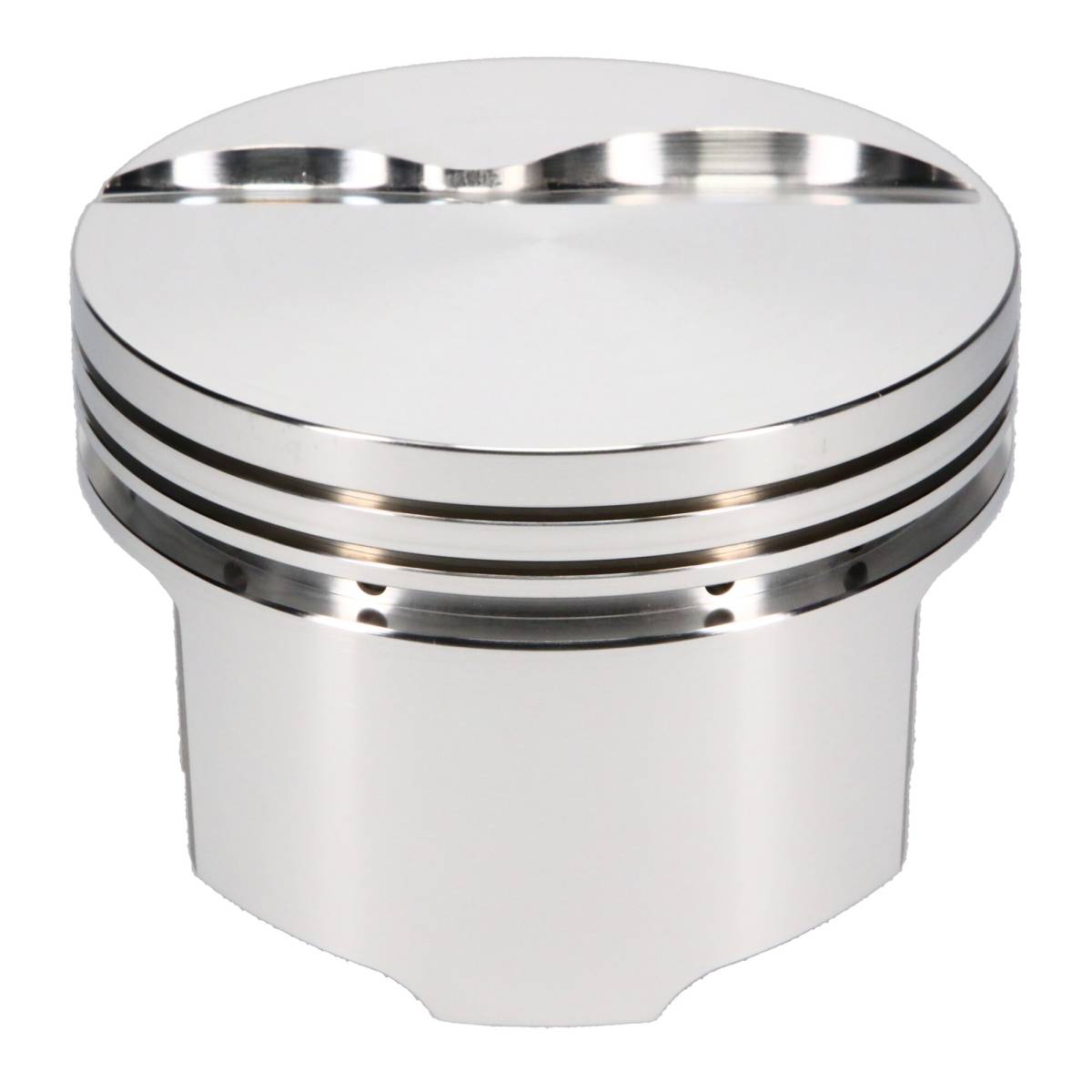

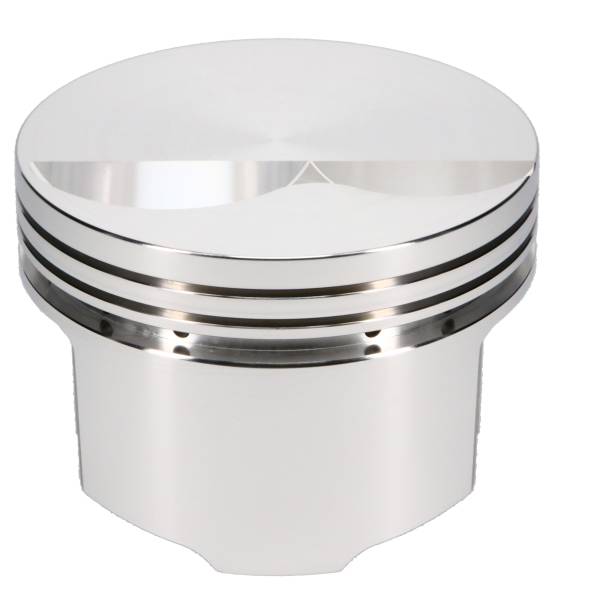

JE Pistons Piston Set, 4032, Flat Top, 4.005 Bore, 1.100 CD, 0.927 Pin, Set of 8. 197560

Engine Piston Set

(0) Reviews: Write first review

SKU: 197560

SRP, Ford, Small Block Ford, 4.005 in. Bore, 1.100 CD, Flat Top, 8 Cyl. Piston Kit

Ford Small Block 347 Wedge

Availability: Available To Order

Shipping: Available to Order

Pricing: $724.99

Description
Details
Shipping
Reviews

Description

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)

Details

SKU: 197560
Item #: 197560
UPC #: 1.93564E+11
Brand: JE Pistons
Part Type: Engine Piston Set
Piston Volume: -4.00
Piston Series: SRP
Product Market: Domestic
Ringset Included: No
Second Compression Ring Thickness: 0.0640
Top Compression Ring Thickness: 0.0640
Category Hierarchy: Auto>SRP Pistons>SRP>Piston Kits
Wrist Pin Length: 2.750
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter: 0.927
Wrist Pin Wall Thickness: 0.150
Engine - Web: Small Block
Make - Web: Ford
Ring Set Included: No
Prop 65 - Short Label: Prop 65 Warning Label.JPG
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Add-On: 927-042-CS
Add-On: 927-2750-15-51S
Add-On: S100S8-4000-5
Bore Diameter: 4.005
Prop 65 Yes/No: Yes
Piston Material: 4032
Engine Type: ICE
Piston Pin Length: 2.750
Piston Pin Material: 5115
Piston Pin Outside Diameter: 0.927
Piston Pin Wall Thickness: 0.150
Product Type: Engine Piston Kit
Prop 65 (C, R or CR): CR
Compression Height: 1.100
Cylinder Head: SMALL BLOCK FORD 20 DEG
Engine: Small Block
Forging Type: FSR
Industry: Automotive
Oil Ring Thickness: 0.218
Piston Average Weight: 411
Piston Head Type: Flat
Availability Remarks: Available To Order
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 12.0 lbs.
Package Dimensions: W12.0000” x H6.0000” x L26.0000”
