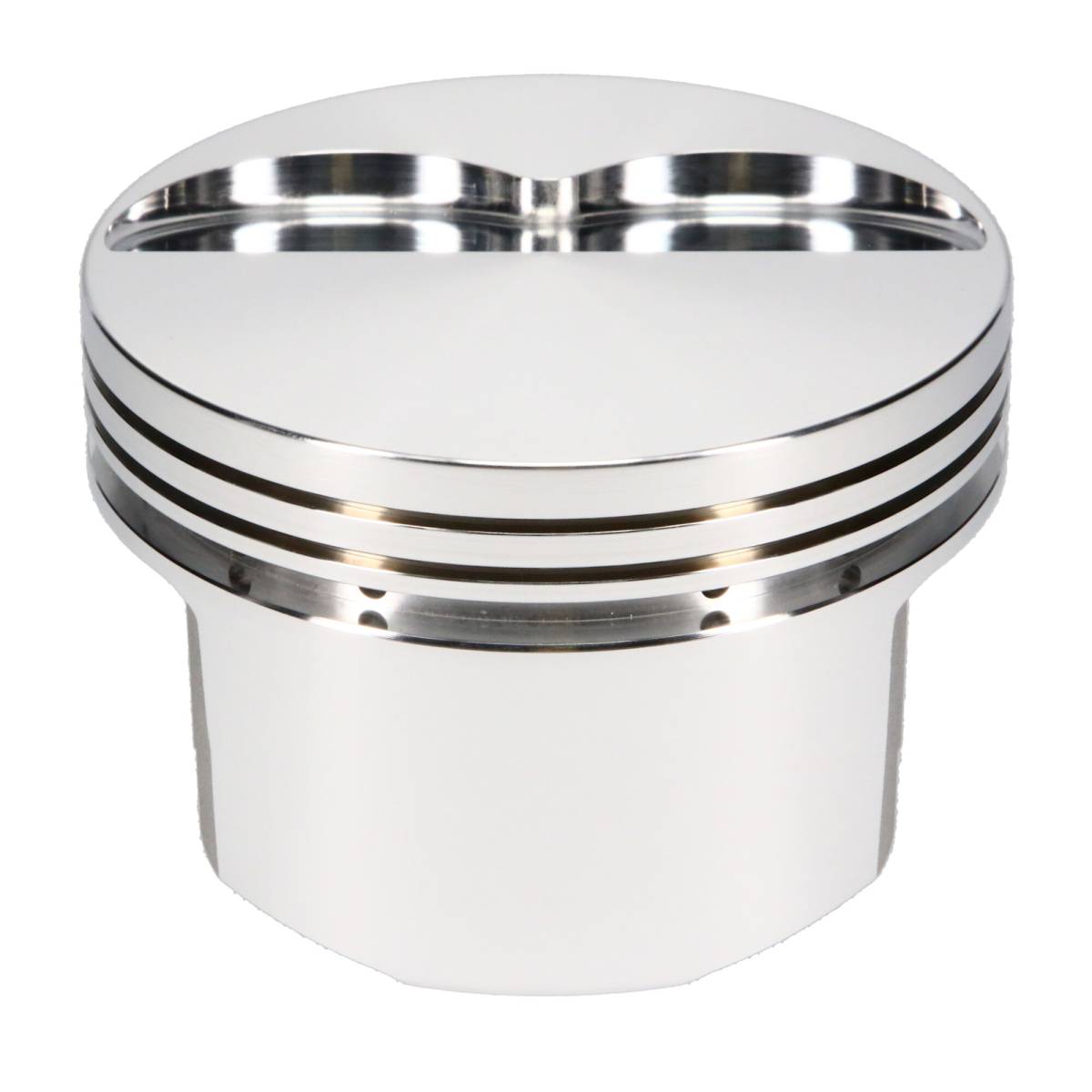

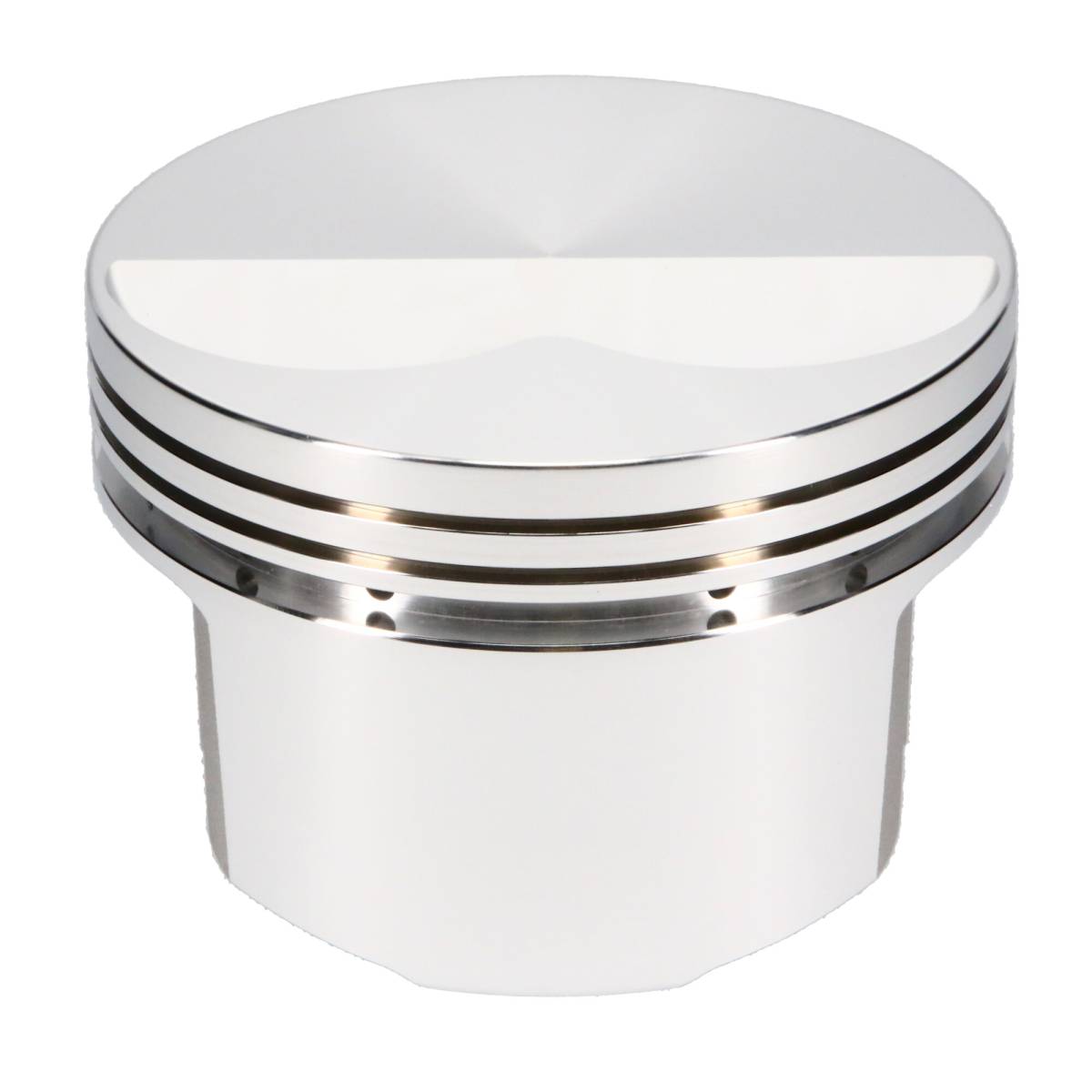

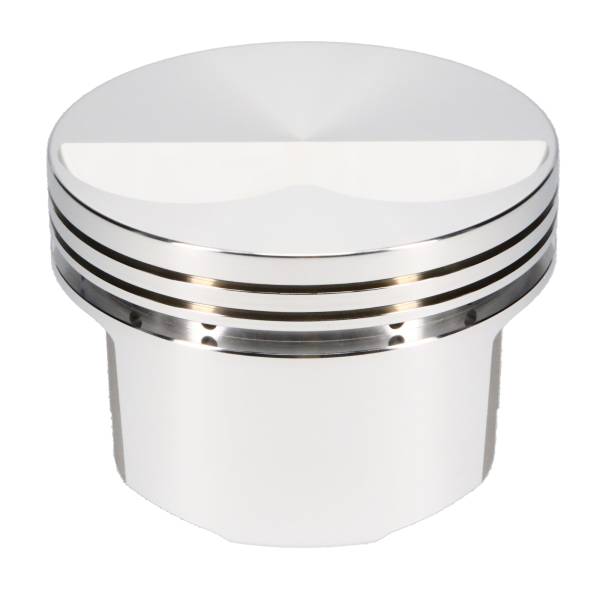

JE Pistons Piston Set, 4032, Flat Top, 4.185 Bore, 1.285 CD, 0.990 Pin, Set of 8. - 196830

Engine Piston Set

(0) Reviews: Write first review

SKU: 196830

SRP, Pontiac, Big Block Pontiac, 4.185 in. Bore, 1.285 CD, Flat Top, 8 Cyl. Piston Kit

Availability: Available To Order

Shipping: Available to Order

Pricing: $699.99

Description
Details
Shipping
Reviews

Description

JE Pistons SRP line is proud to offer huge performance for the price. Forged from strong, 4032 aluminum alloy material, SRP pistons blend strength with affordability, offering an excellent performance bargain for performance rebuild and street/strip applications. (some applications in 2618)

Details

SKU: 196830
Item #: 196830
UPC #: 00193564251275
Brand: JE Pistons
Part Type: Engine Piston Set
Bore Diameter: 4.185
Product Market: Domestic
Ring Set Included: No
Compression Height: 1.285
Ringset Included: No
Prop 65 (C, R or CR): CR
Prop 65 - Short Label: Prop 65 Warning Label.JPG
Cylinder Head: PONTIAC 455
Second Compression Ring Thickness: 0.0640
Prop 65 Yes/No: Yes
Out of Stock Message: Please Allow Approximately 3 Weeks or Less for Shipping
Engine: Big Block
Top Compression Ring Thickness: 0.0640
Piston Material: 4032
Add-On: 990-042-CS
Add-On: 990-2750-15-51S
Add-On: J100F8-4185-5
Forging Type: FSR
Category Hierarchy: Auto>SRP Pistons>SRP>Piston Kits
Engine Type: ICE
Industry: Automotive
Wrist Pin Length: 2.750
Piston Pin Length: 2.750
Oil Ring Thickness: 0.218
Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
Piston Pin Material: 5115
Piston Average Weight: 474
Wrist Pin Outer Diameter: 0.990
Piston Pin Outside Diameter: 0.990
Piston Head Type: Flat
Wrist Pin Wall Thickness: 0.150
Piston Pin Wall Thickness: 0.150
Piston Series: SRP
Engine - Web: Big Block
Product Type: Engine Piston Kit
Piston Volume: -5.00
Make - Web: Pontiac
Availability Remarks: Available To Order
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 14.5 lbs.
Package Dimensions: W12.0000” x H6.0000” x L26.0000”
Shipping: Free Shipping
Shipping Remarks: Available to Order
