TTE900M+ UPGRADE TURBOCHARGERS FOR BMW M5 / M6 / F10 / F12 / F13

BMW PERFORMANCE PARTS: TTE900M+ UPGRADE TURBOCHARGERS FOR BMW M5 / M6 / F10 / F12 / F13 (NEW)

Features :

• Genuine Garrett Housings & Components
• Highly Efficient Next Gen TTE Billet Compressor Geometry
• Larger diameter billet intakes
• Latest Last Gen Larger 9 blade Turbine
• Special TTE Reinforced Bearing System
• Plug & Play (with additional hardware)
• 900+ PS Capable
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Proven TheTurboEngineers quality
• Made in Germany

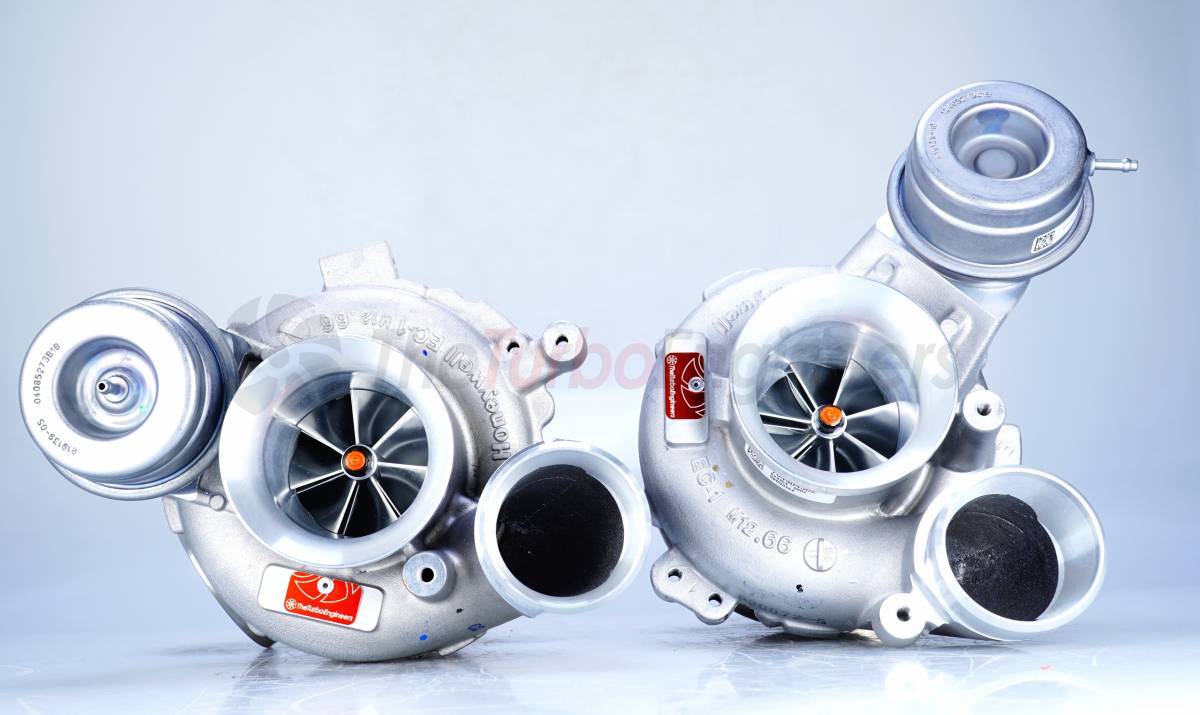

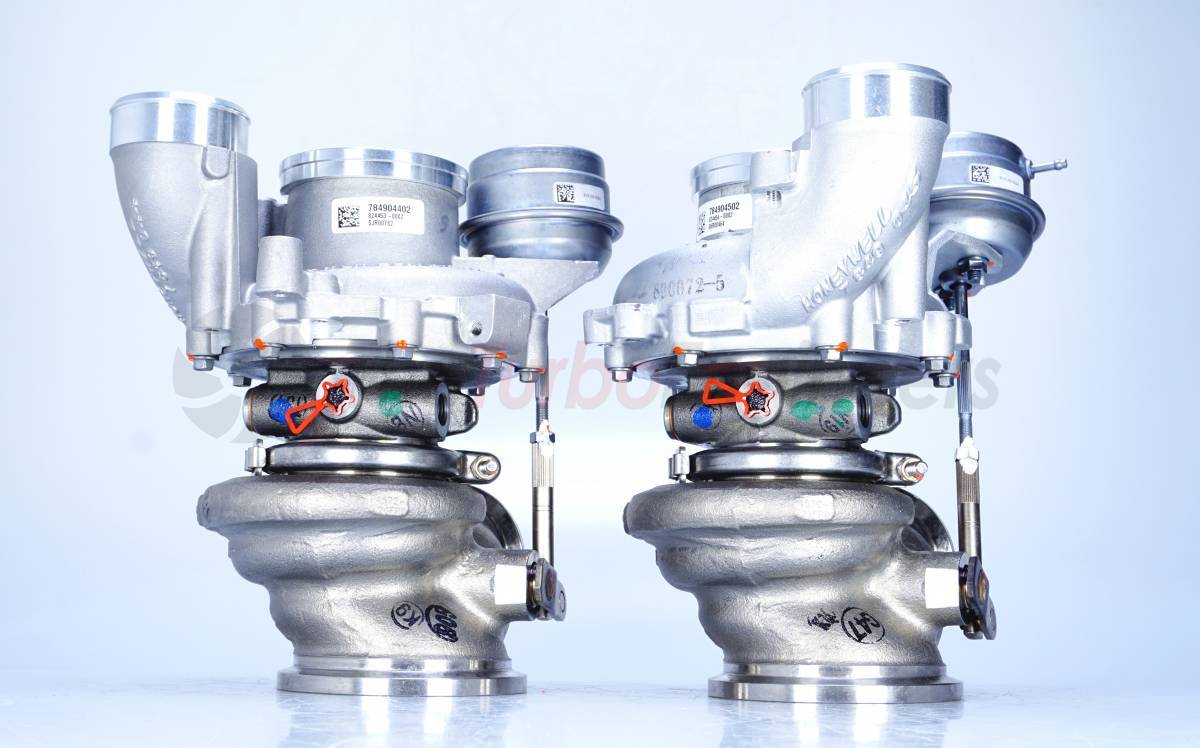

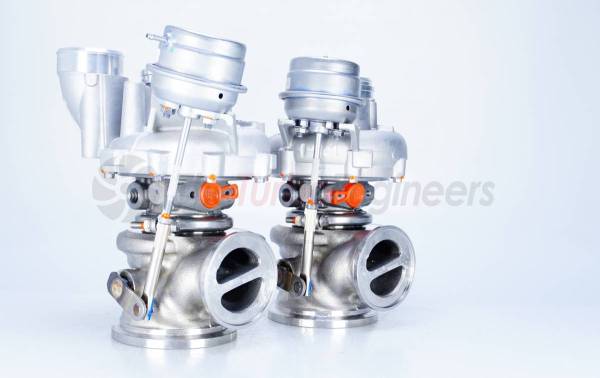

TTE900M+ hybrid performance upgrade turbochargers based on the Original twin-scroll turbochargers for the twin-turbocharged 4.4 V8 BMW engine. Stage 3 power, with great spool and response.

To construct these upgrade turbochargers TTE changes the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to optimum gap to match the new compressor profile. Then they replace the original turbines and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow. They also replace the original thrust bearing for TTE upgrade.

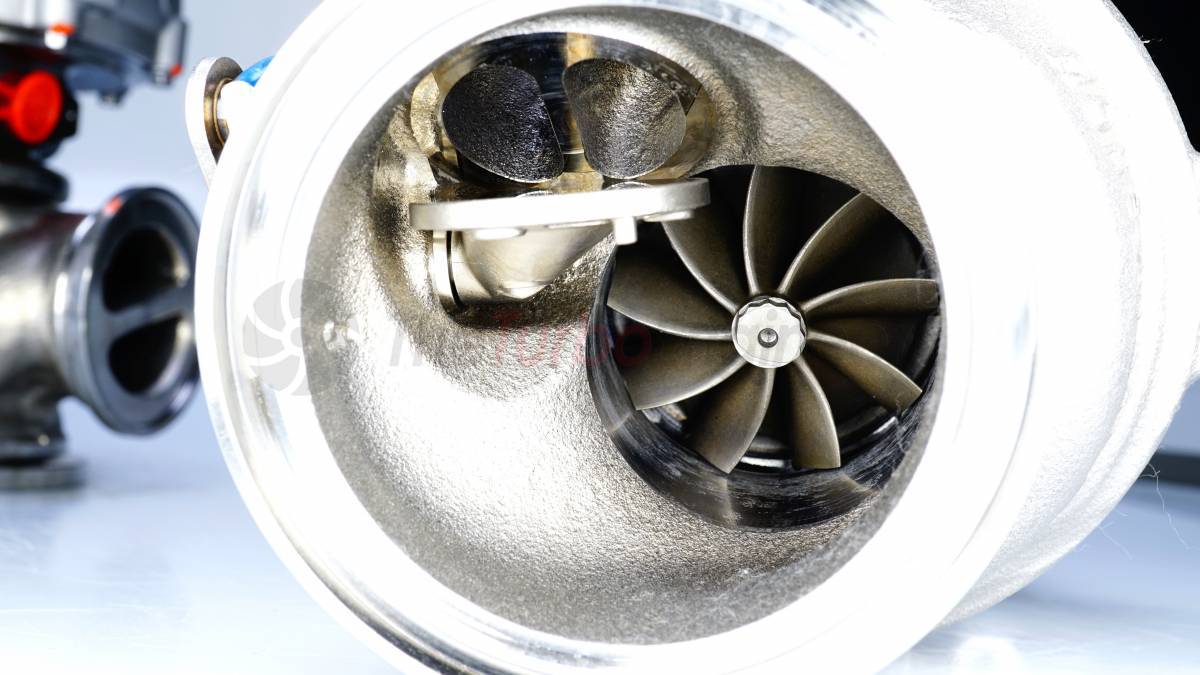

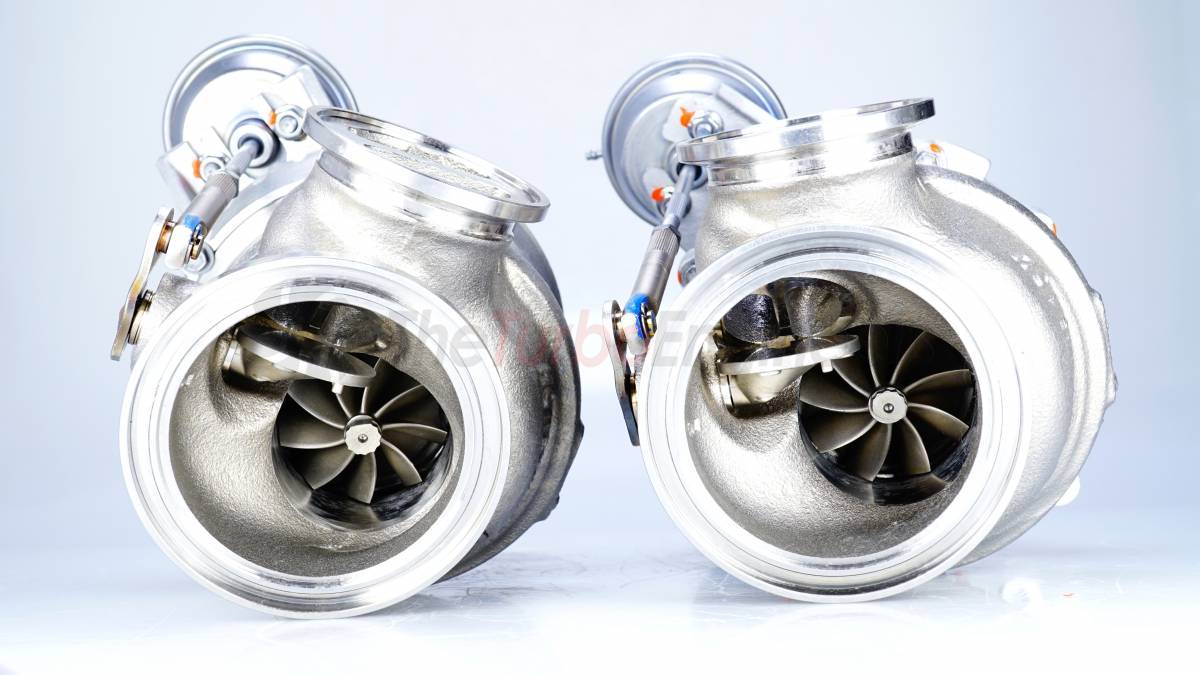

The 9 Blade TTE turbines is a special turbine designed by TheTurboEngineers. Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.

Precisely balancing the turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequently great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using TTE's single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using a VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Fitment:

• BMW M5/M6 F10 / F12 / F13
