TTE555 UPGRADE TURBOCHARGER for VAG 2.0 /1.8 EA888.3 TSI MQB

VW/AUDI PERFORMANCE PARTS: TTE475 UPGRADE TURBOCHARGER for VAG 2.0 /1.8 EA888.3 TSI MQB (TTE555)

Product Features:

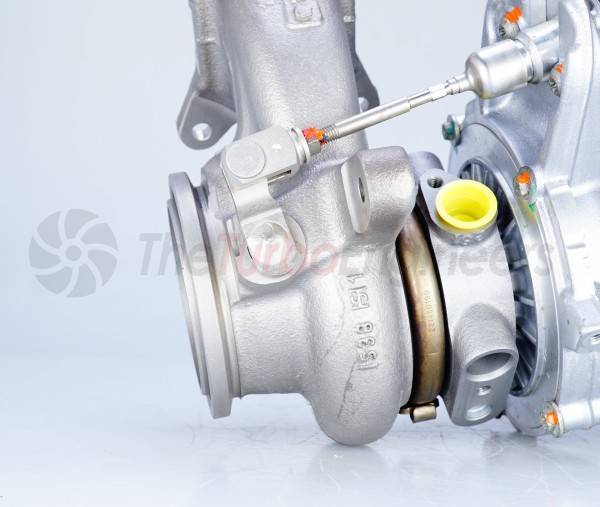

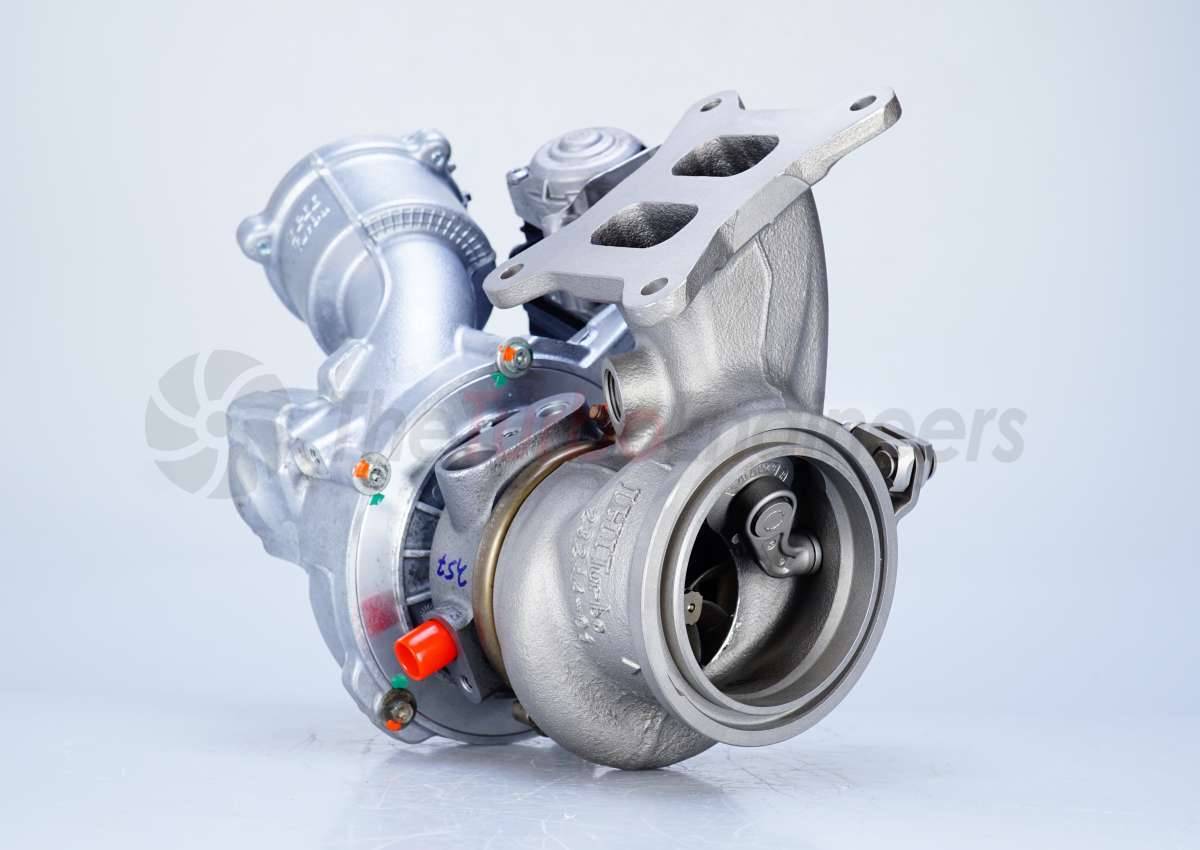

TTE555 is the very latest hybrid performance upgrade turbocharger based on the Original IHI IS38 turbocharger for the 3rd generation VAG 2.0TSI. Stage 3+ power, with good spool and response.

To construct a TTE555 The Turbo Engineers had to change the original compressor and employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to optimum gap to match the new compressor profile. Then replace the original IS38 turbine and CNC mill the turbine housing to install a larger lightweight 9 blade turbine for greater gas flow.  And finally, replace the original thrust bearing for TTE upgrade 360 deg that is made in-house.

Modifying the turbo discharge silencer, removing the original baffle internals and fitting a new straight through section, removing any restriction and its function as a noise canceling device, and so improving the flow and enhancing the sound.

The 9 Blade TTE turbine is a special turbine designed by TheTurboEngineers.  Advantages are greater gas flow, reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost levels. This turbine is extremely light in mass so giving a reduced moment of inertia, meaning fast spool up for the size.

• Original Genuine IS38 IHI turbocharger as the base part
• Original Genuine actuator
• Original Genuine diverter valve
• TTE Billet Milled compressor 6+6 Blade
• TTE High-Flow Low- Mass 9 Blade Turbine
• TTE CNC milled OEM silencer delete
• Reinforced bearing pack
• Plug and Play installation as IS38 turbocharger
• 555 PS+ proven
• Proven TheTurboEngineers quality
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Made in Germany

Precisely balancing turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Fitment:

• VW Golf 2017+
• VW Passat 2015+
• Audi A3 2017+
• Audi S3 2017+
• Audi Q2 2017+
• Skoda Superb 2015+
