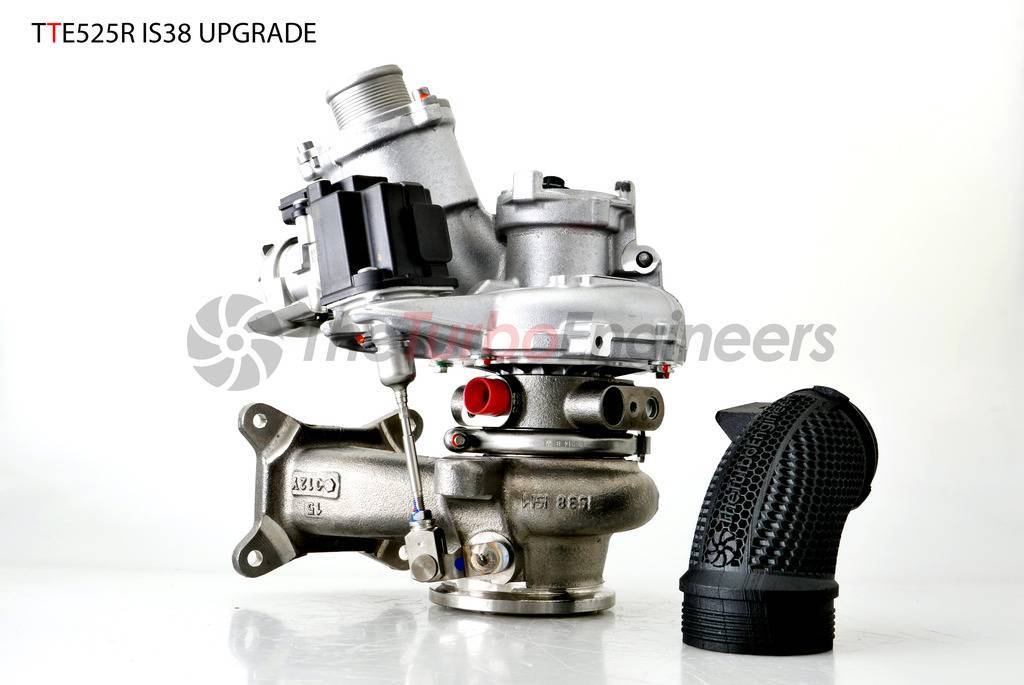

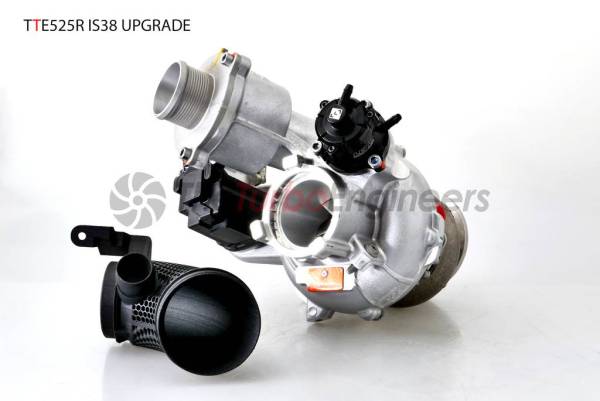

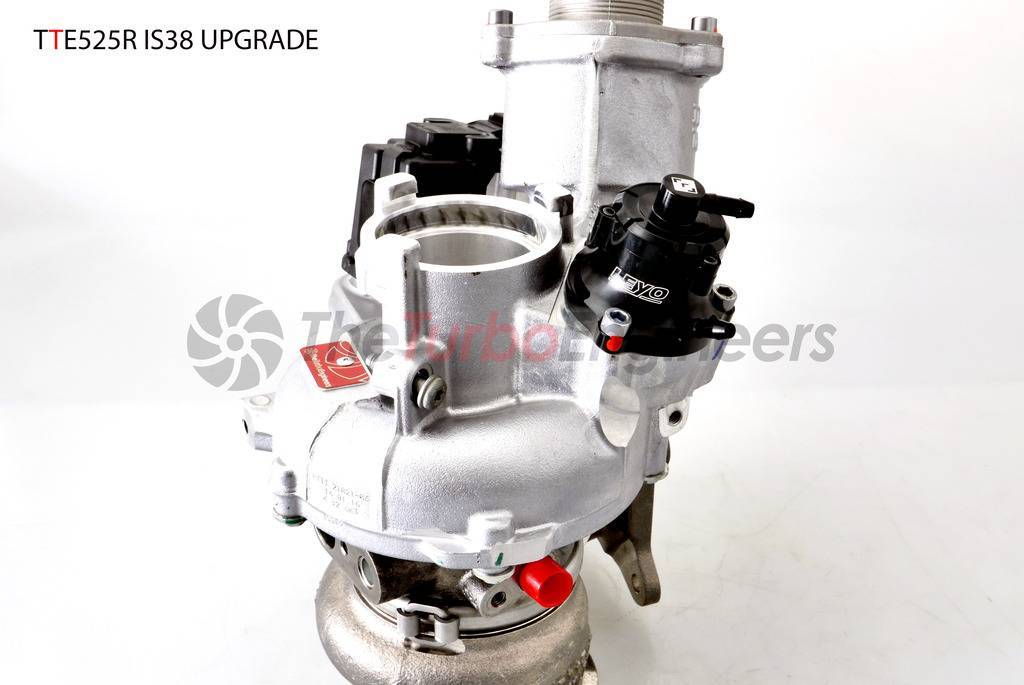

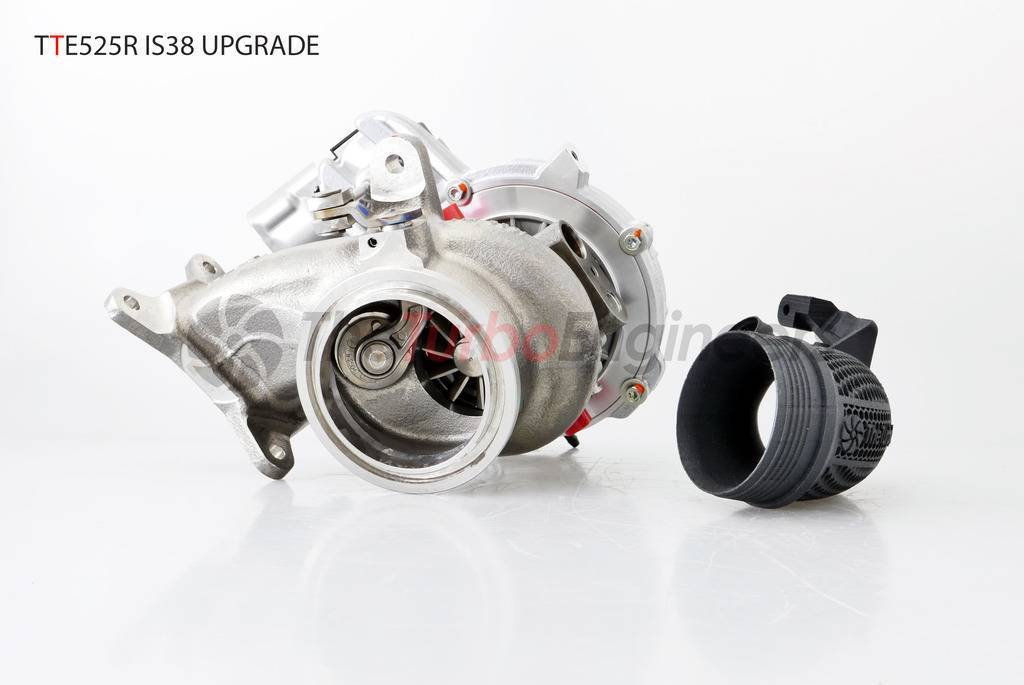

TTE525R IS38 Turbocharger for VW / AUDI 2.0T TSI S3 8V/Golf R Mk7

VW/Audi Performance Parts: TTE525R IS38 Turbocharger for VW / AUDI 2.0T TSI S3 8V/Golf R Mk7 (TTE525R)

Product Features & Benefits

• TTE Oversize Latest billet compressor geometry
• TTE Oversize turbine/shaft, lightened and clipped
• TTE Oversize turbo intake
• Genuine IHI CNC modified housings
• CNC Optimised modified TTE silencer discharge delete
• LEYO Motorsport BOV
• Optimized clearances
• Plug and Play installation
• We offer brand new or we also can offer to recondition and upgrade your used turbocharger
• Single parts finely balanced then components assembled and core high-speed VSR balanced, supplied with a balance test result document
• 550PS Capable
• Designed, Machined & Built by TTE in Germany

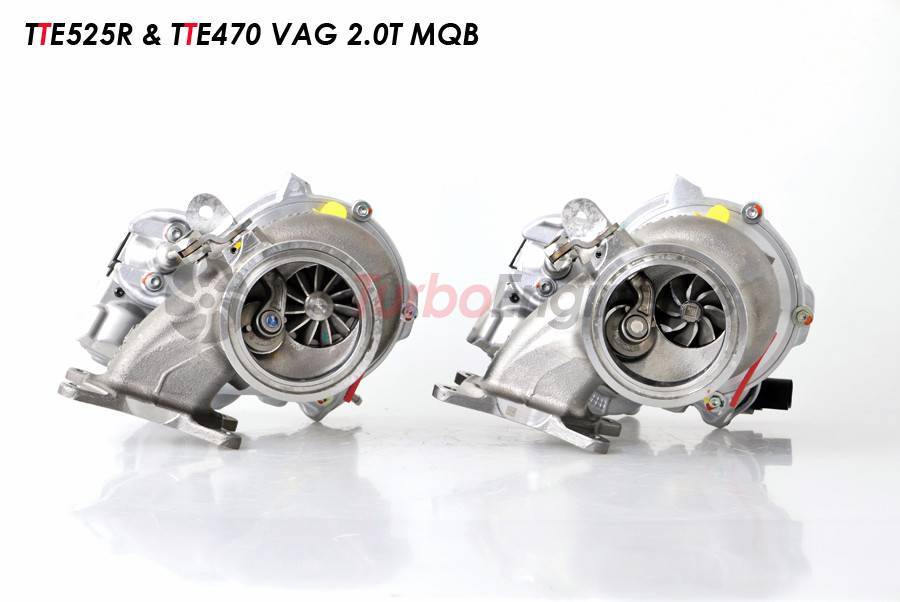

TTE525 is TTE's latest hybrid performance upgrade turbocharger for the new 3rd generation VAG 2.0TSI following on from their proven TTE450+ (TTE470) upgrade stage. Stage 3 power, same near stock turbocharger spool and response. To construct a TTE525R the original compressor is changed to employ a far larger and more efficient billet wheel with extended tip technology and mill the compressor cover to optimum gap to match the new compressor profile. We replace the original IS38 turbine and shaft and CNC mill the turbine housing and install a larger clipped and lightened turbine for greater gas flow. We CNC modify original compressor cover, for increased airflow. We replace the original recirculation solenoid valve with a LEYO Motorsport atmospheric blow-off valve that's included in the price.

Equilibrium

Precisely balanced turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Additional Details

Fitment:

• 2015+ Audi S3 8V 2.0T TSI
• 2015+ VW Mk7 Golf R

Recommendations

• Air Intake System
• Downpipe
• Intercooler
