TTE500+ Turbocharger for AUDI 2.5 TFSI TTRS / RS3 / RSQ3 /RS3 8V

VW/Audi Performance Parts: The Turbo Engineers Turbocharger for AUDI 2.5 TFSI TTRS / RS3 / RSQ3 /RS3 8V (TTE500+)

Product Features & Benefits

• TTE Billet Highly efficient compressor geometry with a 58mm Inducer

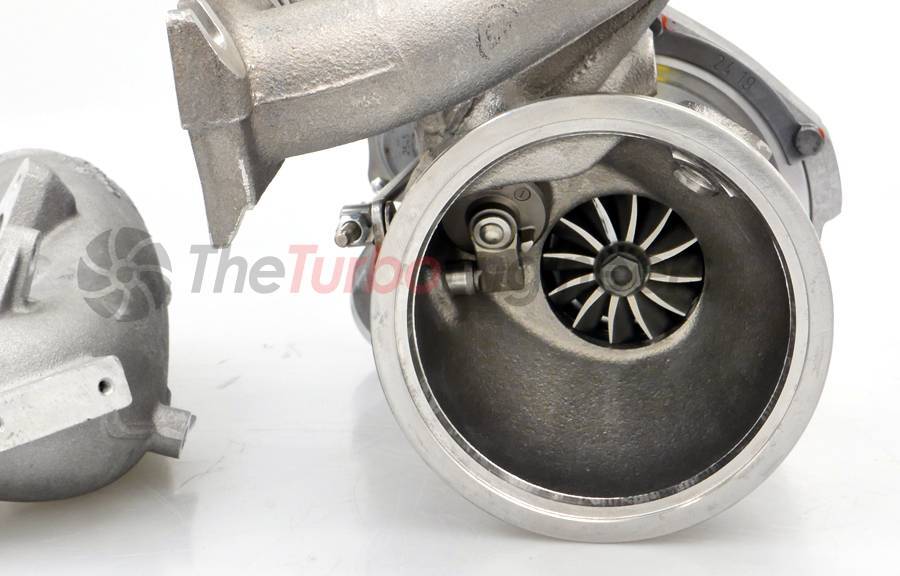

• TTE 9 Blade High-flow Low-mass turbine
• Genuine BorgWarner Uprated & reinforced actuator
• Genuine BorgWarner Reinforced motorsport bearing system
• CNC Optimized and hand finished Intake pipe
• Viton O-ring for Intake Sealing
• CNC Optimized Compressor Cover Machining Clearances
• CNC Port Matched Exhaust Manifold Runners
• Plug and Play Installation
• 500+ HP Capable (proven at 550PS on 100ron)
• Single parts finely balanced then components assembled and core high-speed VSR balanced
• Supplied with a balance test result document
• Proven TheTurboEngineers quality
• Made in Germany

 Top Tip : The original VAG manifold gasket needs enlarging to match the runner ports on the turbo manifold.

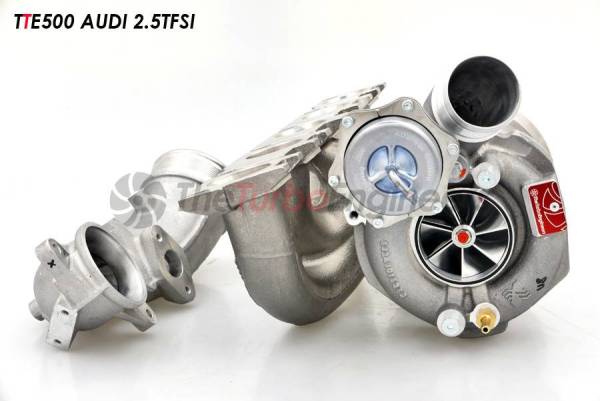

Introducing the TTE500+ performance turbocharger, Including a CNC matched and ported OE intake pipe for the 2.5 TFSI motor. Based on the original turbocharger but upgraded to new higher output specification. Offering The Complete Ultra Plug & Play Upgrade proven at 545PS@1.9Bar by MRC Tuning on 99ron and proven at 554PS on 100Ron by JDEngineering.

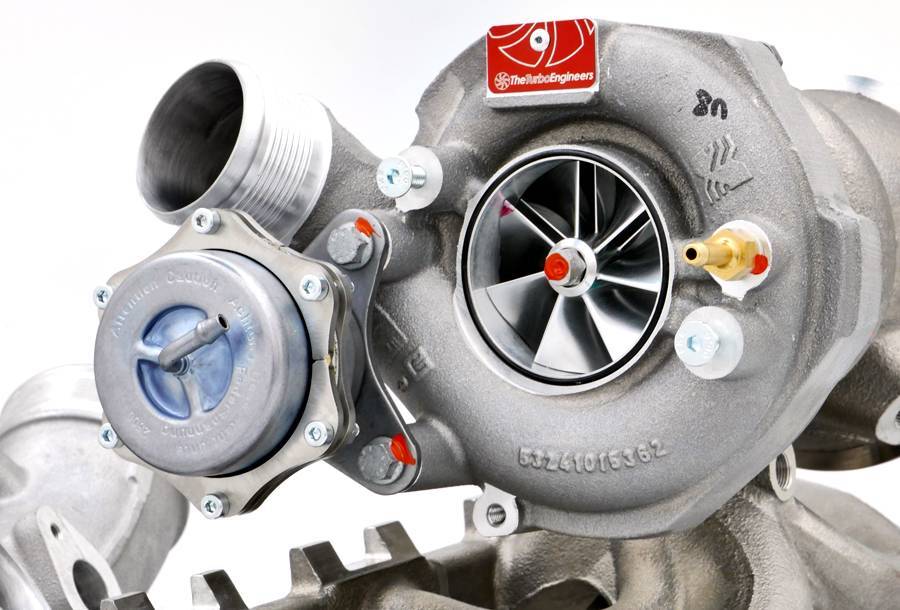

At the core of the TTE500+ is a much larger TTE compressor wheel, chosen because it is highly efficient and creates an extremely high flow for comparative size. Re-Profiled compressor cover to optimized tolerance to ensure maximum compressor efficiency is given.

Attention is given to CNC port the exhaust runners at the flange to match and smooth the transition from head to exhaust runner for maximum gas speed and so improving efficiency to the bigger turbine.

Special profile 360 deg high-performance motorsport journal bearing is fitted, to remain durable at higher loads with no loss in transient response. The actuator used is uprated sprung OE unit, fitted with our reinforced clamps for trouble-free operation.

The intake pipe included with this upgrade has been CNC milled and hand finished to match and smooth the transition to the larger compressor inlet opening to lower turbulence and maximize velocity, this is sealed to the compressor cover by a Viton rubber o-ring for a constant dependable seal.

Precisely balanced turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Additional Details

Fitment:

• 2008+ Audi TTRS 2.5 TFSI

Recommendations

• Air Intake System
• Downpipe
• Intercooler

Please NOTE: TTE constantly reviews, revises and improves their product range, the product you receive may differ from the images advertised
