TTE280 Turbocharger for VW / AUDI A4 B5 / B6 1.8T 20V LONGITUDINAL

VW/Audi Performance Parts: The Turbo Engineers Turbocharger for Audi A4 B5 & B6 / Passat B6 1.8T Longitudinal (TTE280)

Product Features & Benefits

• Genuine BorgWarner modified housings

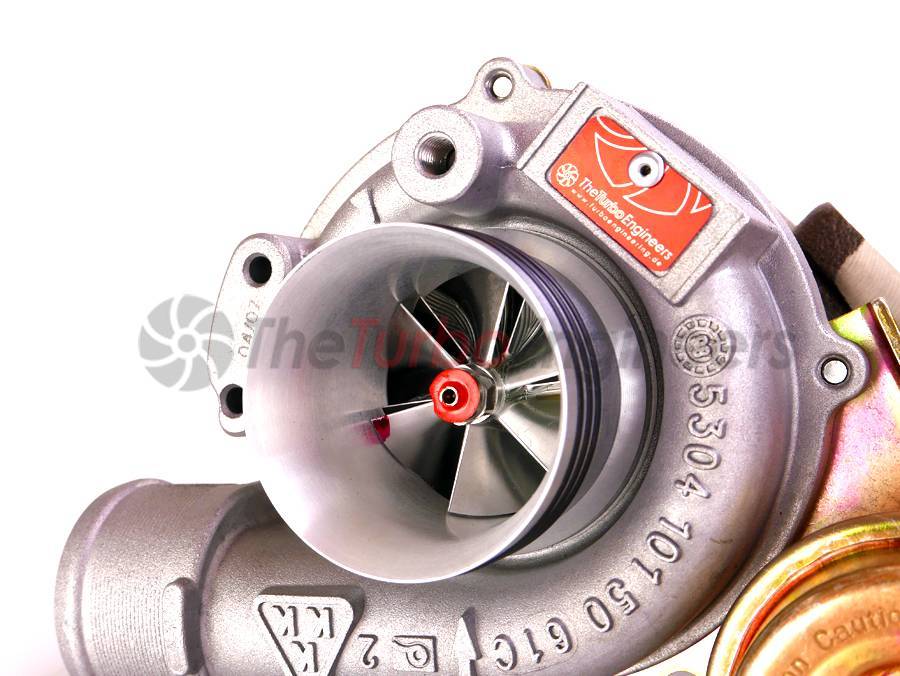

• Genuine BorgWarner Billet 6+6 extended tip compressor geometry (Inducer 46.50mm / Exducer 59.50mm)

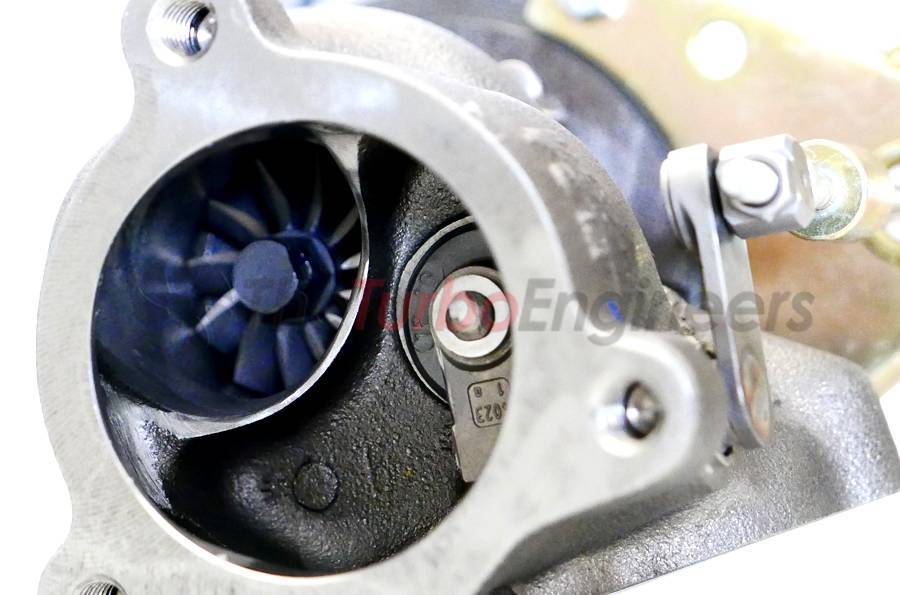

• Genuine BorgWarner K04 Trim 8 enhanced output clipped turbine (Inducer 50mm / Exducer 44.50mm)
• TTE Billet 58mm oversize intake (Viton O-rings Seals inc)
• Genuine BorgWarner 360 ° Reinforced bearing system
• Genuine BorgWarner uprated actuator
• Optimized clearances
• Single parts finely balanced then components assembled and core high-speed VSR balanced, supplied with a balance test result document
• Fitment As Original with Supersize turbo intake pipe
• 300PS Capable
• Designed, Machined & Built by TTE in Germany

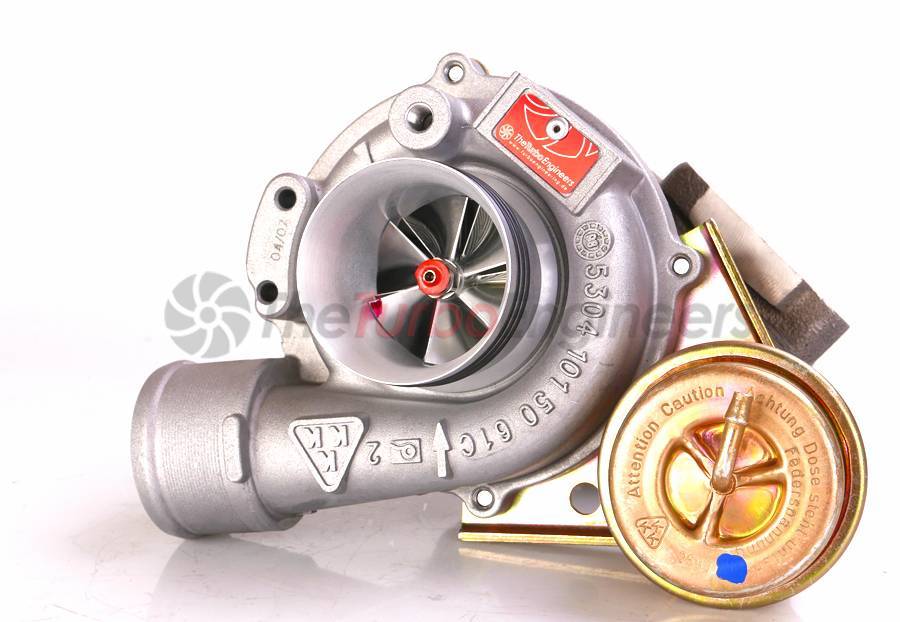

TTE280 performance turbocharger for the 1.8T VAG longitudinal platform. To produce this hybrid K04 TTE280 upgrade turbocharger TTE uses a much larger BorgWarner 2283 billet compressor wheel, chosen because it is highly efficient and features BorgWarner Extended tip technology, creating extremely high flow for comparative size, but giving a compressor map that's very wide.

Equilibrium

Precisely balanced turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using TTE's in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.

Additional Details

Fitment:

• Audi A4 B5 1.8T 20V
• Audi A4 B6 1.8T 20V
• VW Passat B6 1.8T 20V

Recommendations

• Air Intake System
• Downpipe
• Intercooler
