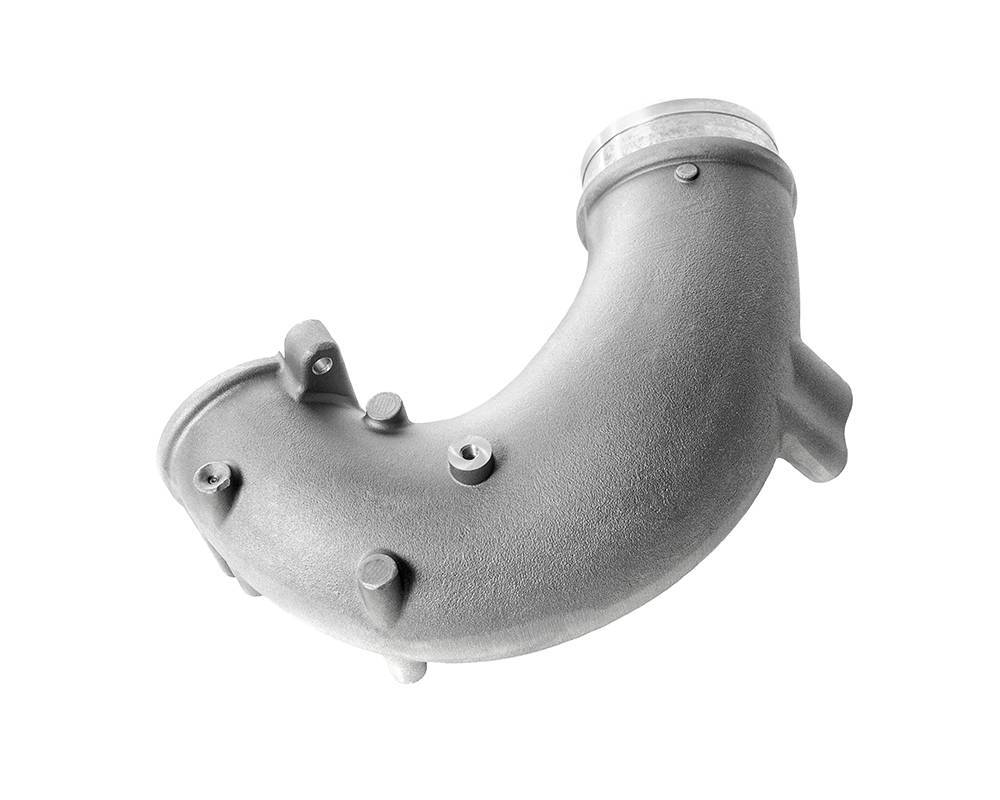

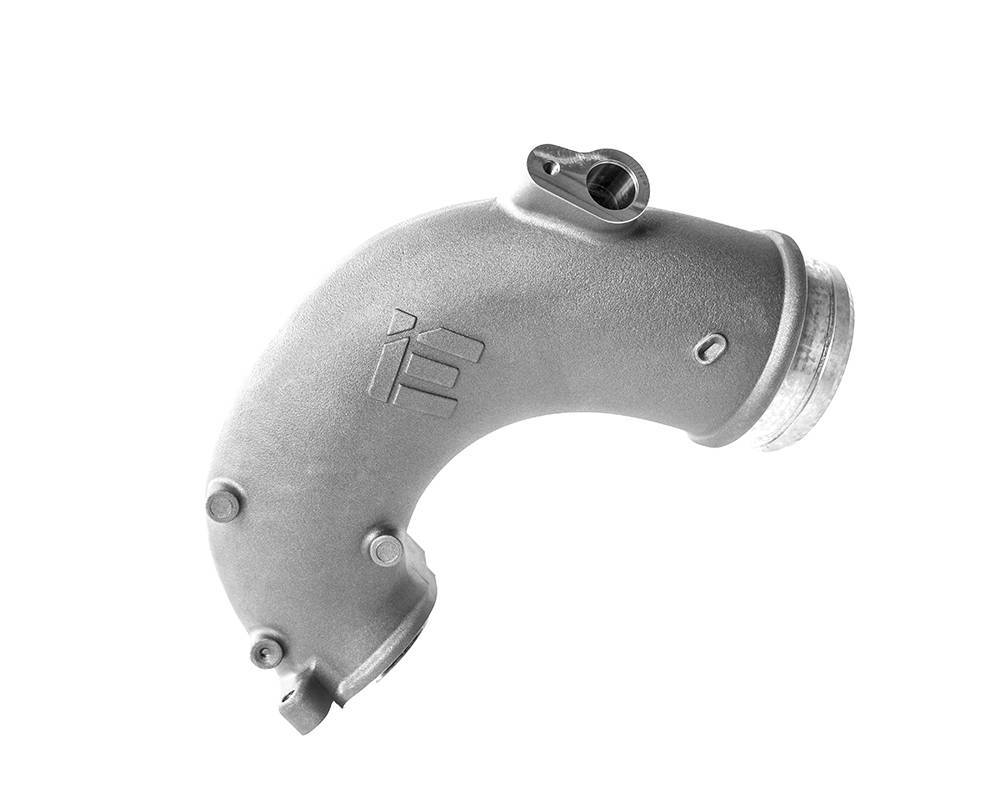

IE Turbo Inlet Pipe for Audi 2.5T EVO RS3 & TTRS engines

AUDI PERFORMANCE PARTS: IE Turbo Inlet Pipe for Audi 2.5T EVO RS3 & TTRS engines (IEINCQ2)

Product Features:

• Adds +13BHP & 16BTQ on Stage 2 setups

• Removes factory restrictive turbo inlet

• Direct-fit with IE and stock intake

• Retains all OE vacuum lines and emissions systems

• Uses OE style mounting that won't fail like modular ring style inlets

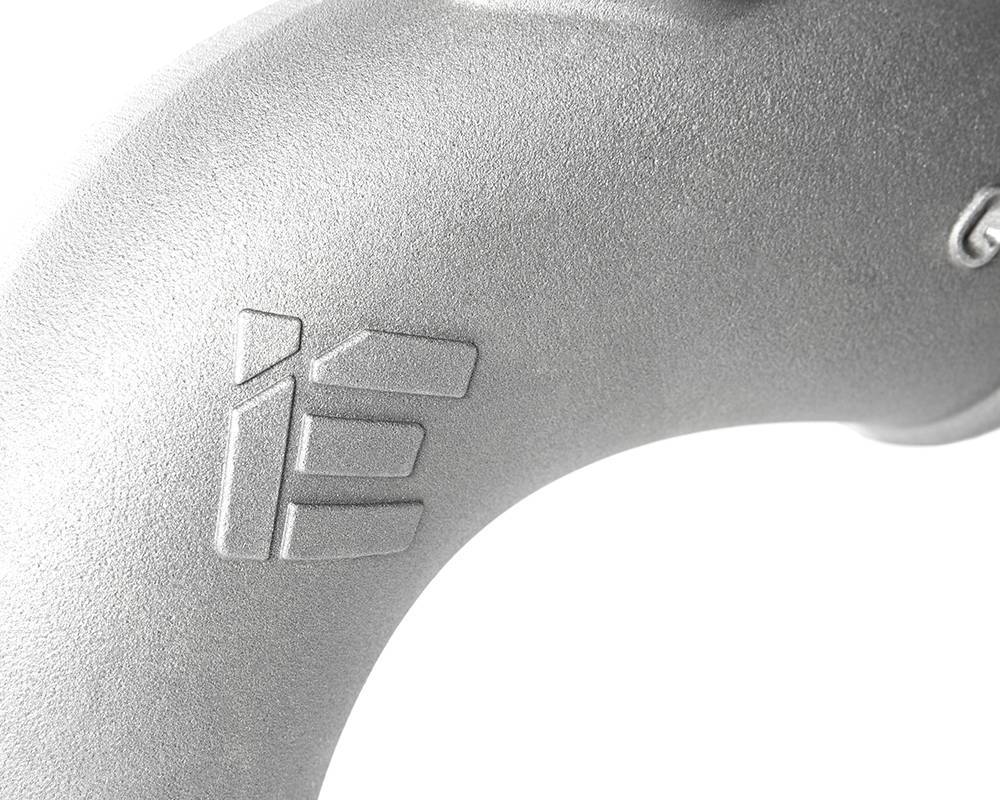

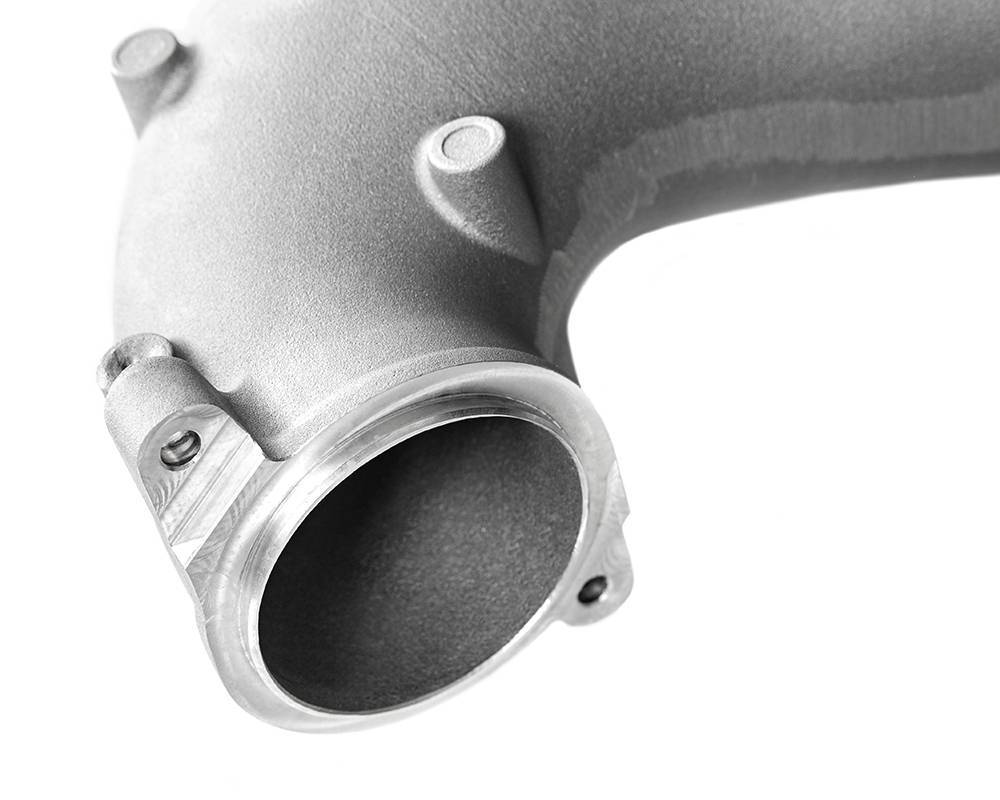

• High-quality in-house CNC machined cast aluminum

• Direct replacement install, no permanent modifications required

During product development, IE engineers paid serious attention to the factory inlet and charge piping systems during serious track, road, and dyno testing on higher output Stage 2 power levels. While perfectly fine for stock power numbers, the stock equipped turbo inlet pipe was immediately identified to be restricting flow and reducing power output on Stage 2 equipped Audi 2.5TFSI engines.

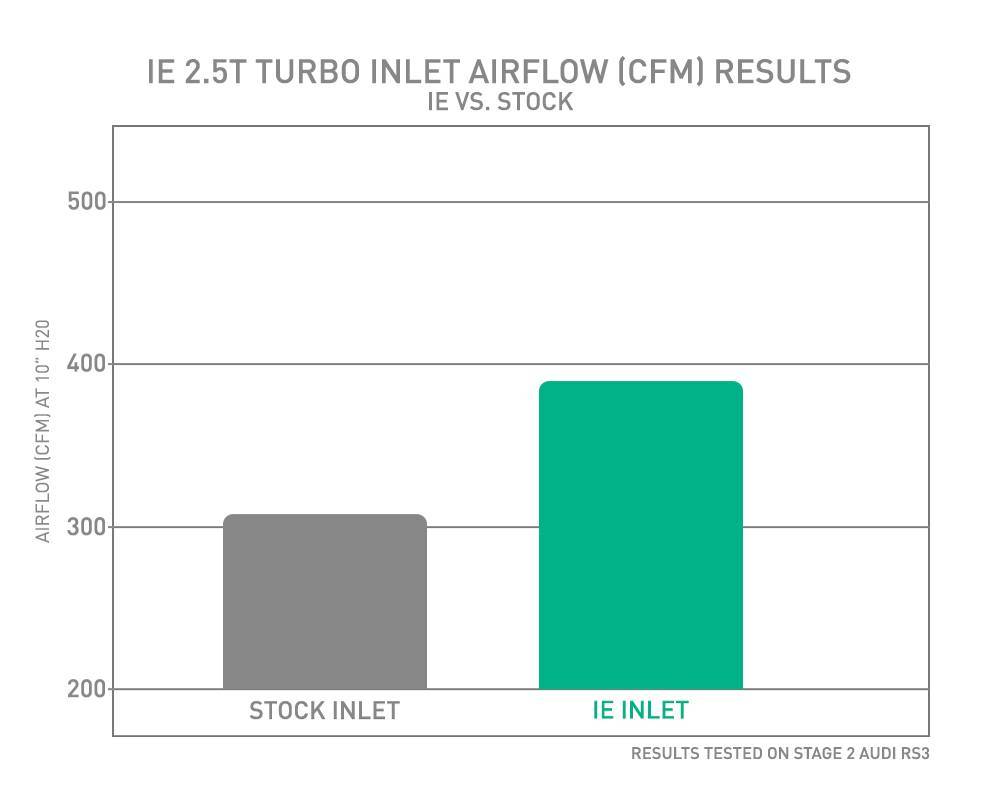

IE engineers set out to completely re-design this pipe with performance first. 3D scans were taken of the engine bay and stock inlet pipe to identify the space available to work in. This allows them to maximize the flow characteristics of the design without running into any clearance issues or rubbing expensive factory hoses or lines. The factory inlet also incorporated an emissions breather tube into the design of the pipe that interrupted airflow to the turbo. By choosing to design their own cast pipe, the engineers were able to design a much larger performance version with unique shapes and bends that aided in airflow resulting in a massive 28.27% increase in flow over stock!

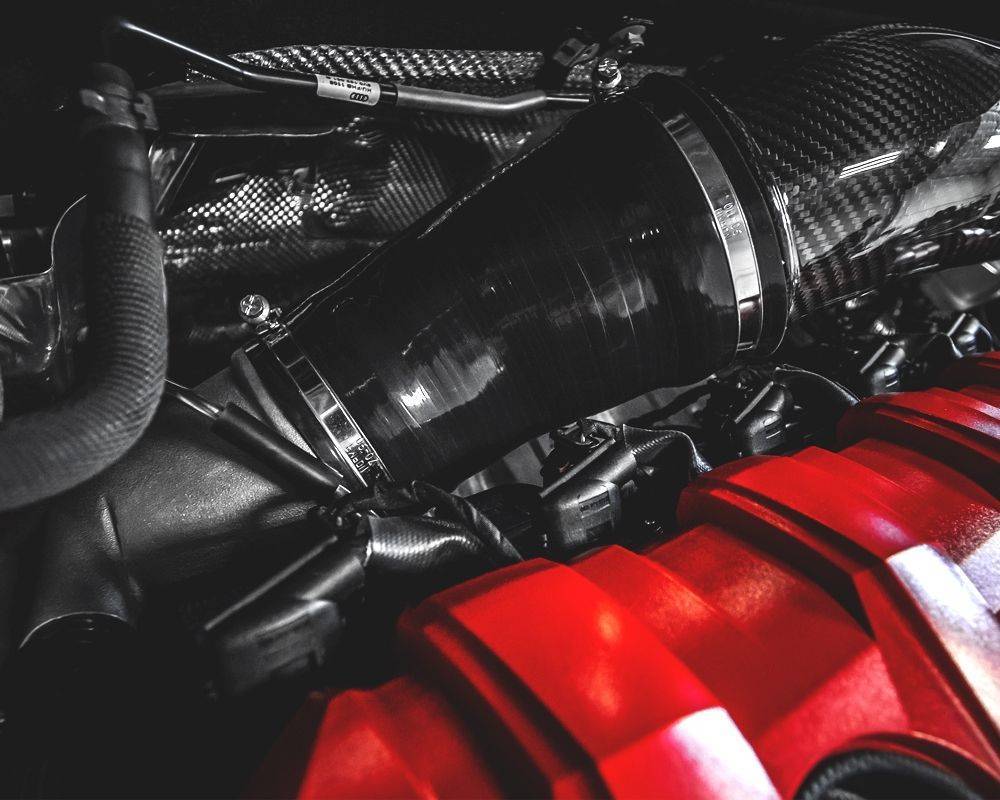

Installing an IE Turbo Inlet Pipe Upgrade onto your Stage 2 tuned 2017+ Turbo 5 cylinder engine will result in an immediate power and torque gain helping you get the absolute most out of your turbocharger making it that much more fun on the street or give you the competitive edge on the track.

Installation is fairly straight-forward and can be completed typically within a couple of hours. Although the majority of the installation uses common hand tools, a Dremel with a cut-off attachment may be required.

VEHICLE FITMENT

• Audi - RS3 2017+ (MK3 - 8V) 2.5T
• Audi - TTRS 2016+ (MK3 - 8S) 2.5T

Does not fit right-hand drive (RHD) vehicles.
