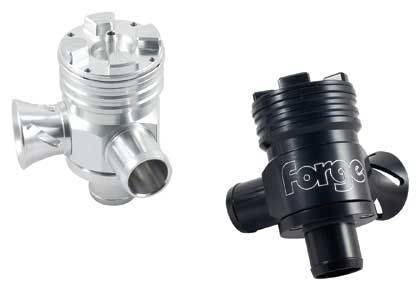

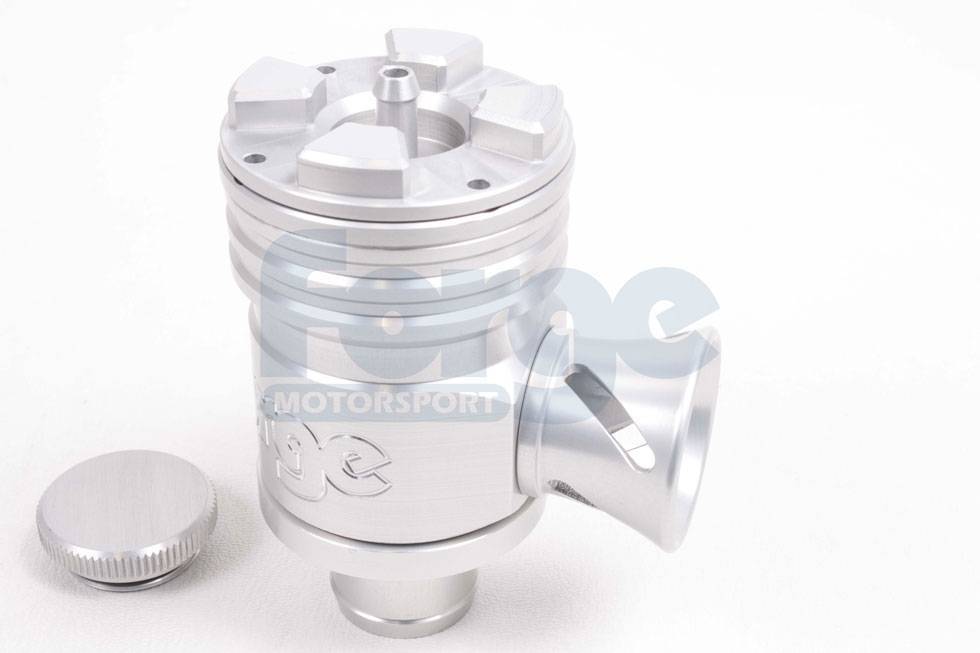

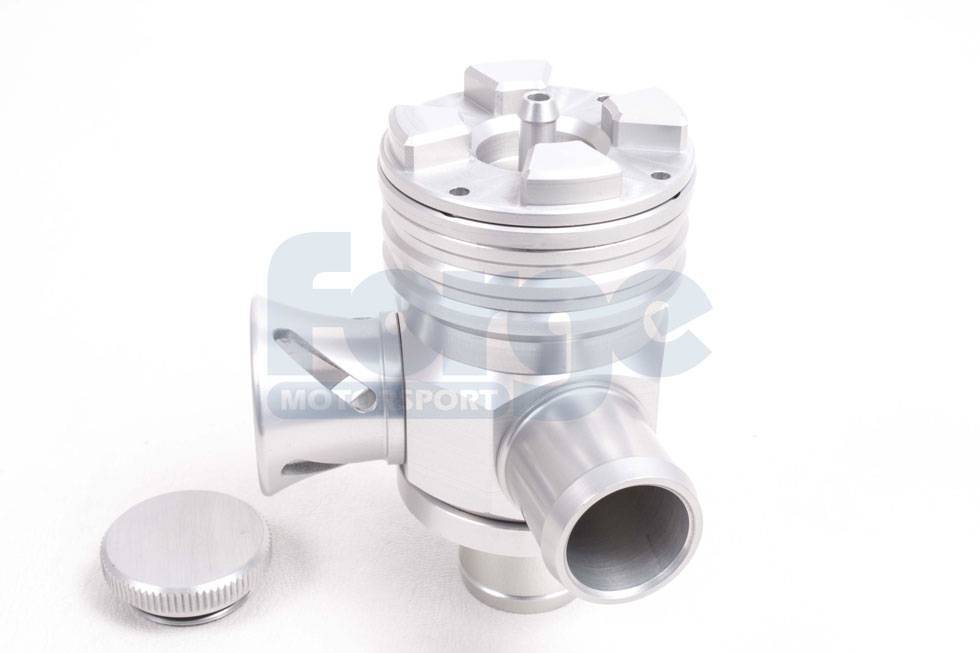

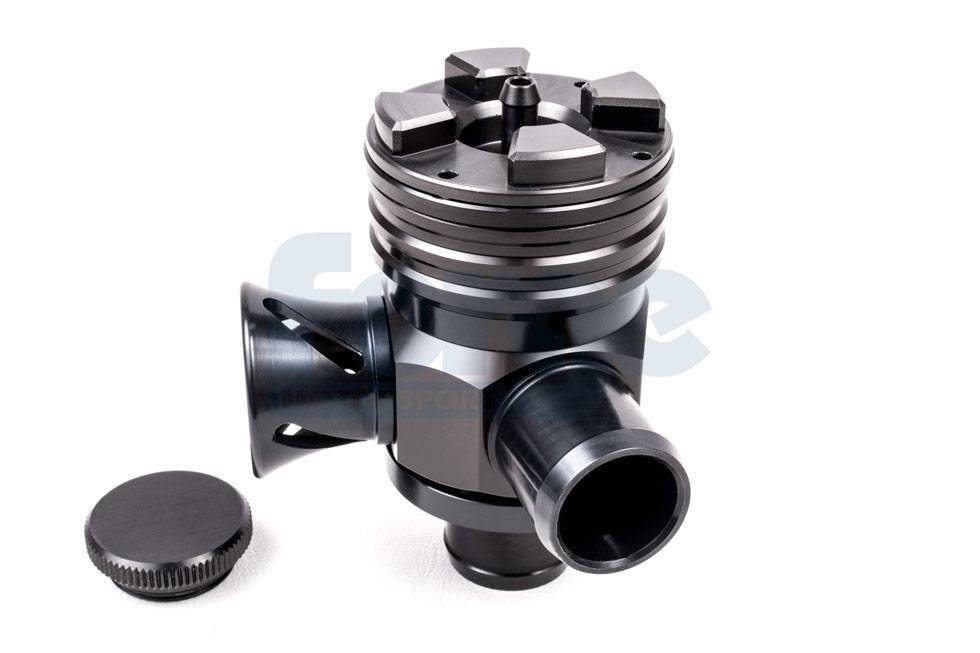

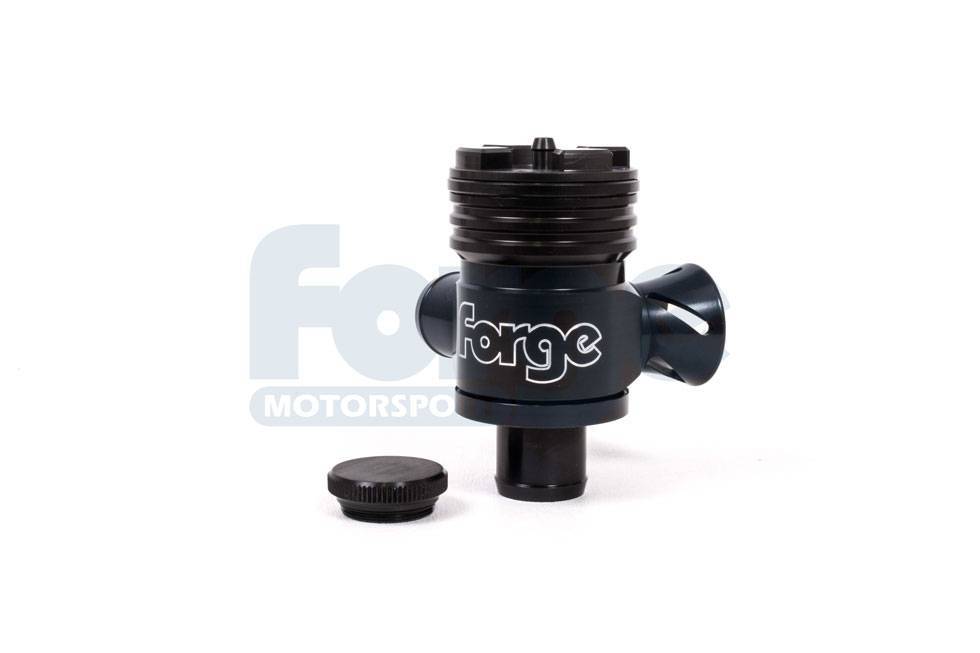

Forge The Splitter, a Recirculation and Blow Off Valve Black

VW/Audi Performance Parts: Forge The Splitter, a Recirculation and Blow Off Valve (FMDVSPLTR)

Product Features & Benefits

The Splitter is a truly remarkable valve that gives a combination of blow off and recirculation valve operation, all at the same time, and has been specifically designed for the many turbo engined applications that operate metered airflow management systems. This means you get all the noise of the blow off valve whilst retaining the compatibility with the recirculation requirements of the engine management system. As a bonus this valve has the ability to convert the valve to recirculation only mode for those times when stealth running is required.

This valve uses a Brass piston which utilizes new sealing technology along with a variable spring preload, incorporating a ratchet type top adjuster that will allow for the positive and precise adjustment to match the valve to your engine. This is achieved by using a unique single, conical, progressive rate spring, that can allow for the retention of boost pressure over a wide adjustment range. This unique spring design also allows for unrestricted piston travel and flow volume regardless of the amount of pre-load adjustment added to the spring.

Other manufacturers' valves use cylindrical springs with adjustable pre-load, which often experience restricted piston travel and a reduction in flow volume.

Note: This valve requires installing the opposite way to the original Bosch Valve. This means that the side pipe is fitted into the Turbo Intake Hose, and the base pipe connects to the hose that runs to the boost side of the turbo.

Additional Details

Fitment:

• Audi A3 1.8T
• Audi S3 (8L) 1.8T
• Audi A4 1.8T (B5/B6)
• Audi A6 1.8T (B5/B6)
• Audi TT Mk1 (1998-2006)
• Renault Clio 172/182
• Seat Ibiza Mk3 Petrol
• Seat Ibiza Mk4 Petrol
• Seat Leon Cupra 1.8T
• Seat Leon Cupra R 1.8T
• Skoda Octavia 1.8T
• VW Beetle 1.8T
• VW Golf Mk4 1.8T
• VW Passat 1.8T
• VW Polo 1.8T

In The Box:

• 1 x FMDVSPLTR Valve
• 1 x Valve Blanking Cap
• 1 x Instruction Booklet
• 1 x Forge Sticker

All Twin Turbo Applications require 2

To download fitting instructions for this product click here

Please Note: This valve requires installing the opposite way to the original Bosch Valve. i.e. the side pipe is fitted into the Turbo Intake Hose and the base pipe connects to the hose that runs to the boost side of the turbo.
