Forge Uprated Intercooler for VW Golf Mk7 & Audi S3 8V

VW/Audi Performance Parts: Forge Uprated Intercooler for VW Golf Mk7 & Audi S3 8V (FMMK7FMIC)

Product Features & Benefits

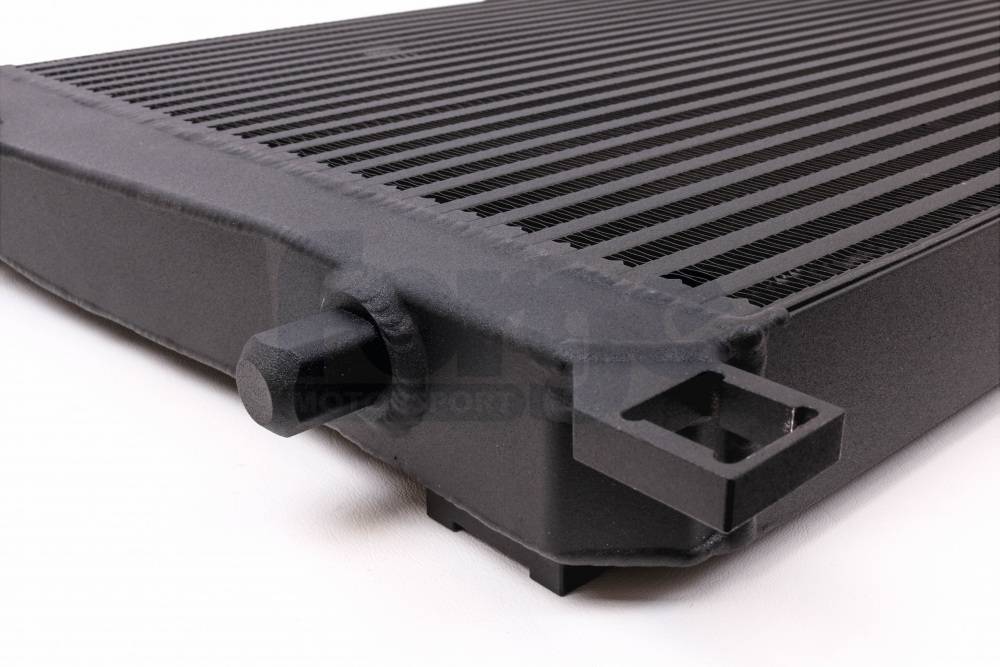

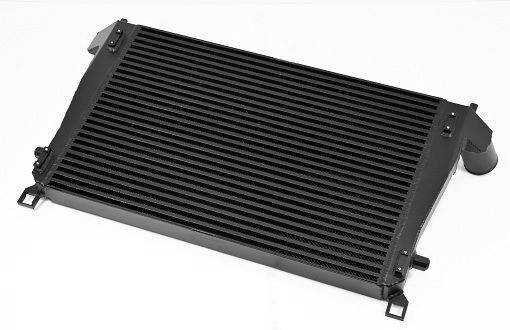

This is our new intercooler for the Mk7 Golf, MK7R and S3 (8V chassis) fitted with the latest EA888 2.0 TSI engine. Volkswagen Audi group have changed just about everything from the Mk6 to the Mk7 chassis so this core has had to be designed from scratch in order to fit in with the redesigned radiator and condenser.

The core fits in the stock location and requires no modification to the radiator pack assembly. Cooling is radically improved. The test Golf Mk7 GTI achieved 16bhp more without any other modifications whilst also demonstrating a consistant 25-30 deg C (77-88 deg F) temperature drop over stock on the dyno, with all runs performed on the same day with only a 2 deg C variation in ambient temperature over the runs (in fact it was 2 deg C hotter when we tested the Forge core).

You can also see the tempertature drop comparison of the stock and Forge cores in the graph

The stock core typically increased in temperature by 5 deg C on each subsequent run, with heat soak becoming a real issue after only three runs. The stock ECU was pulling timing and boost after only one run – typically anything over 40 deg C inlet temperature will cause the ECU to change ignition timing to suit – and the stock core peaked at 60 Deg C on its first run, where the Forge core was able to get temperatures back under control after each run so that by the end of 4 back to back runs the core temperature had only risen by 4 degrees C

All of this was achieved on a stock car (it should be noted that although Volkswagen claim 220bhp for this new engine we have seen examples range from 230 to 240bhp completely stock, on the same rolling road). At the time of writing there are no software solutions (other than tuning boxes) available to really test the car or the intercooler, but we are confident that the core will continue to deliver a much lower intake charge temperature than stock across all states of tune, as its based on our award winning Mk5/Mk6 intercooler which has been fitted with great success on everything from road and track cars, to full blown race and drag cars.

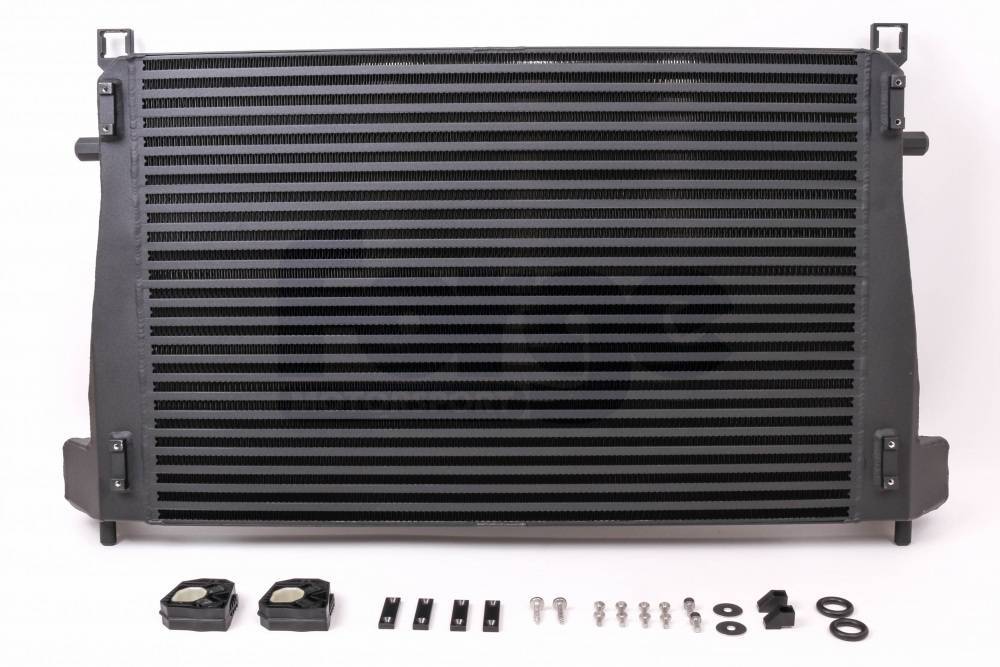

The core comes in a satin black light powder coated finish, and includes all mounting hardware necessary for installation.

Additional Details

Fitment:

• Audi S3 8V 2.0 TSi
• VW Golf Mk7 GTI
• VW Golf Mk7 R

 For Install Instructions click here.
