Forge Alloy Boost Hard Pipe for Audi 1.8T 225hp, w/o DV connection

VW/Audi Performance Parts: Forge Alloy Boost Hard Pipe for Audi 1.8T 225hp without DV Connection (FM225BHP)

Product Features & Benefits

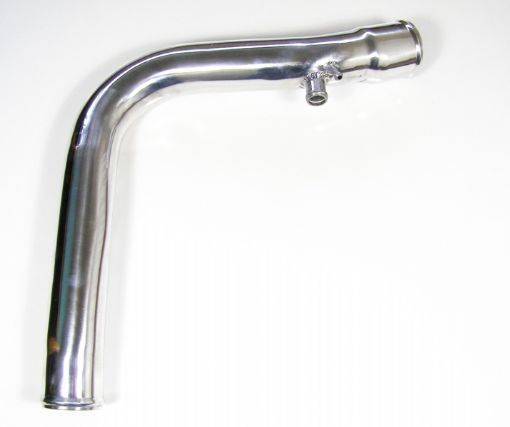

This alloy non-resonated boost hard pipe replaces the turbo resonated turbo outlet pipe (runs from the turbo down the left hand side of the engine) on the 1.8T 225 hp engines as found in the Audi TT S3 225 hp (8N), SEAT Leon Cupra R. (uses original mounting brackets)

The removal of the noise resonator allows unobstructed flow on the discharge or boost side of the turbo. We have also modified the “dent” in the underside of the pipe that allows it to clear the cam cover and made it as shallow as possible, to just allow the pipe to fit, but not overdone as to impede airflow. These combined modifications give quicker spool up of the turbo and effectively reduces the load placed upon it.

This pipe is available in two options:

• As a direct replacement for the original pipe (part# FM225BHP)
• As a direct replacement for the original pipe, but minus the re-circulation valve hose connector, for those that have a DV relocation kit.

Additional Details

Fitment:

• Audi S3 1.8T (8L)
• Audi TT Mk1 1998-2006

Please note that due to the production process the pipe may have minor surface marks.
