ERSportsSeries4"HighFlowCattedDownpipefor2011+BMWF10/F25/E84/E89N20!
Description

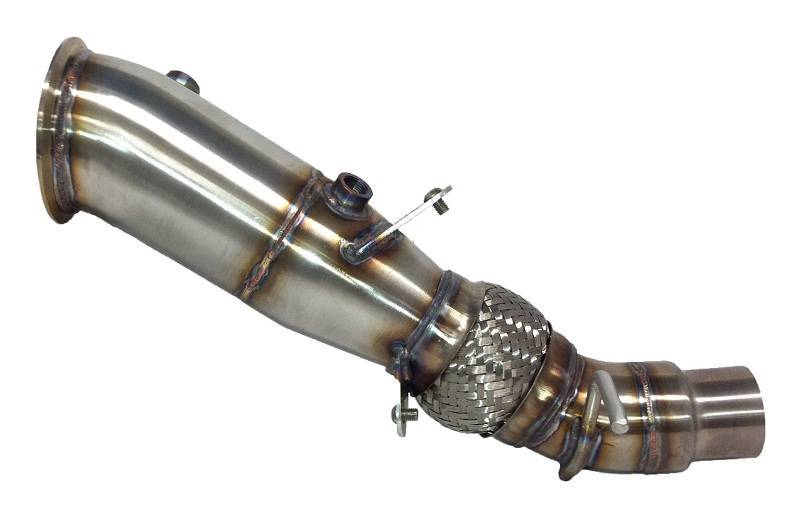

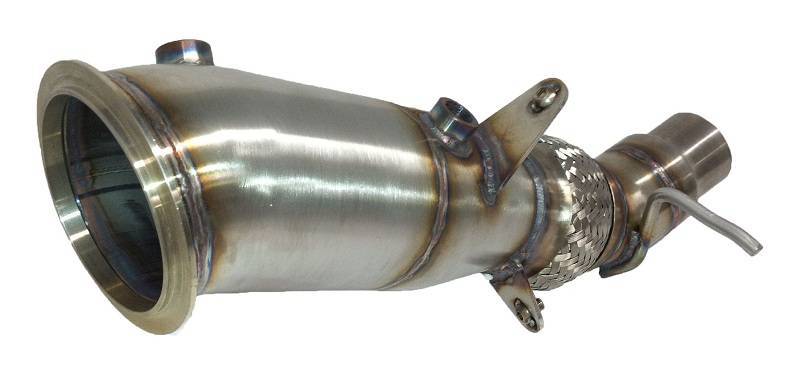

BMW Performance Parts: ER Sports Series 4" High Flow Catted Downpipe for 2011+ BMW F10/F25/E84/E89 N20 (BM-EXH008CAT)
Product Features & Benefits
Ease of Installation: (1 Easy, 5 Hard) 3
- Now available for the 2011+ 528i, 2011+ X1 s/xDrive20i, 2012+ X3 xDrive20i/xDrive28i or 2011+ Z4 sDrive28i.

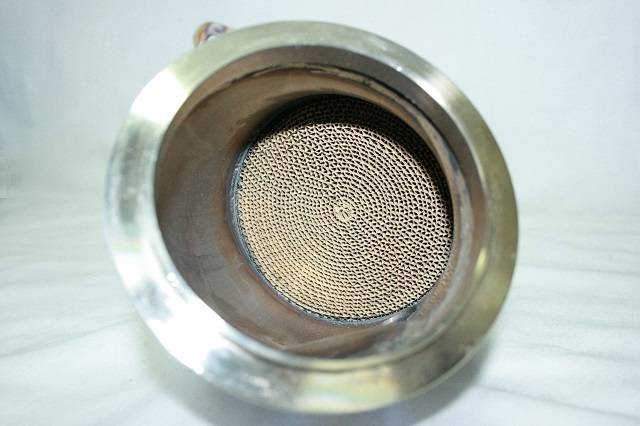

- High Flow 200 cell metallic catalytic converter used.
- Higher Max Horsepower Power Curve.
- Higher Intial Torque Curve. Torque curve hits faster and higher and longer.
- Better throttle response and faster turbo spool up times.
- Mandrel Bent 4" piping. Smooth transition to the exhaust system.
- 100% Stainless Steel Construction
- 100% TIG welded for better quality welds
- Precision CNC machined turbocharger V-Band flange.

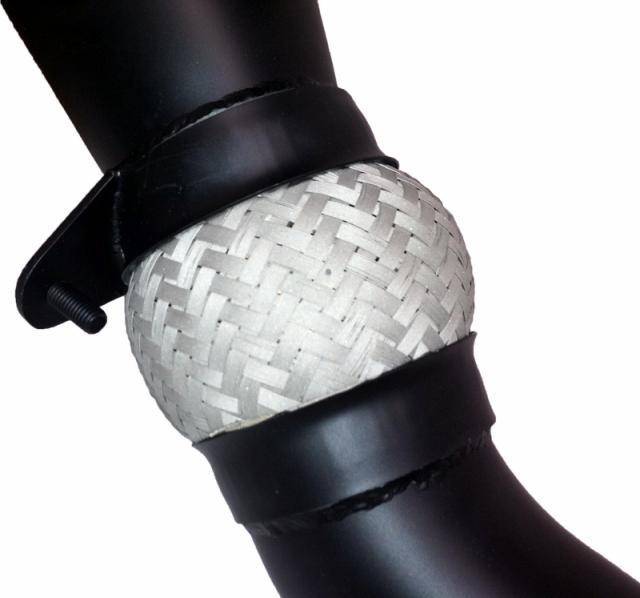

- Stainless steel flex section like factory that allows proper exhaust movement and flexibility.
- Mirror polish or brush finish

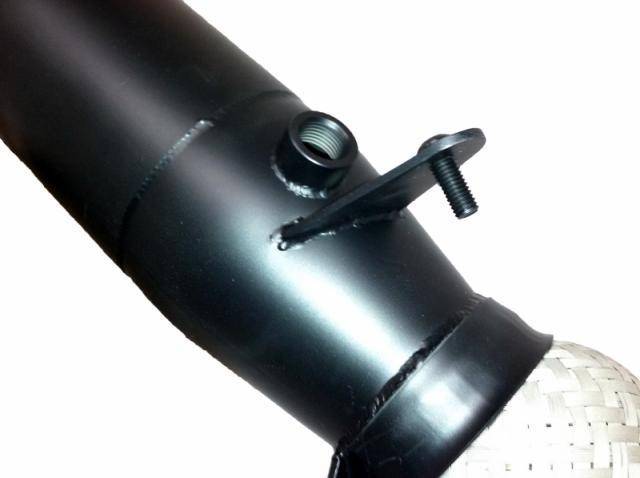

- Available with high temperature black thermal coating to reduce underhood temperatures.
- Optional - Additional O2 sensor bung for wideband O2 sensors (comes with pre-installed plug)
- Optional EGT sensor bung for EGT gauges (comes with pre-installed plug)
- Compatible with the factory or aftermarket exhaust systems.
- Track tested durability.
- Includes all hardware for complete installation.
- Limited Lifetime Warranty.
Additional Details
CAUTION: This product is intended for OFF ROAD USE ONLY. Not legal for use on pollution controlled vechicles upon public highways. THIS PRODUCT IS FOR SALE FOR ALL 49 STATES EXCLUDING CALIFORNIA. THIS ITEM IS NOT FOR SALE, INSTALLATION, OR USE ON LICENSED VEHILES IN THE STATE OF CALIFORNIA. This does not affect any international customers.
ER Competition Series Catless Downpipes is constructed out of 100% 304 grade stainless steel and utilize mandrel bent piping. They are 100% TIG welded by ER's in house fabricators and built in the USA. The factory turbocharger turbine housing utilizes a 4" V-Band flange which we have duplicated and CNC machined cut out of billet 304 stainless steel. Stainless Steel CNC machined O2 sensor and laser cut brackets are TIG welded using stainless steel rods. The O2 sensor is positioned at the factory location. Since the outlet of the turbocharger is 4" and the factory exhaust system is 2.5", the factory downpipes reduces size using short transitions from 4" before the catalytic convert and 2.5" afterwards. Due to space needed for the cataylic converter, the factory downpipes reduce in size using very short transitions. Since our catless downpipes delete the cataylic converter, we have more space. Thus, we use very long transitions. These longer transitions allow the exhaust gas time to smoothly transition from the larger piping to the smaller. This results in less exhaust turbulence and backpressure which again improves throttle response and increase turbocharger spool times (less turbocharger lag).
OPTIONS
Ceramic Thermal Coating - The purpose of ceramic coating downpipes is to keep heat from the exhaust gases inside the downpipe from radiating out. This keeps underhood temperatures lower and less heat absortion by nearby parts/surfaces. Another added benefit is that by keeping in heat (energy) in the exhaust gases inside the downpipe, exhaust flow velocities stay up, resulting in lower backpressure. The ceramic coating also adds additonal corrosion resistance. ER utilizes the best ceramic coating possible. ER's thermal coating can resist up to 2000F of heat. It is available in black only (all the other colors cannot withstand heat that high).
Additional O2 Sensor Bung - An additional O2 sensor bung can be added so that you can easily add a wideband o2 sensor and gauges so that you can monitor air/fuel ratios. The additional O2 sensor bung will come pre-installed with a plug so that you do not need to run the o2 sensor right away.
Optional EGT (Exhaust Gas Temperature) Bung - An additional 1/8" NPT bung can be added so that you can easily add a EGT sensor and gauge. The optional EGT sensor bung will come pre-installed with a plug so that you do not need to run the EGT sensor right away.
DISCLAIMER
We make no claims as to emission performance for street or highway use. Some equipment is not sold for street use in any state or country where state or federal regulations prohibit its use. Some items listed in the online catalog are intended for off road use and for purpose built race cars only. EUROTEK TUNING, LLC does not make any claims of street legal use of these products that are not intended for use on public roads. We do not ship any emissions related equipment to the state of California. We require an off-road/track use only waiver completed, signed, faxed, emailed or returned to our facility before emission related equipment is shipped to customer supplied address. We are not affiliated with Volkswagen Audi Group, Porsche AG or any of their subsidiaries. EUROTEK TUNING, LLC is not responsible for errors on our website.
10% OFF Installation
Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.
Details
Shipping Information
- Item Requires Shipping
- 13.0 lbs.
- Free Shipping
