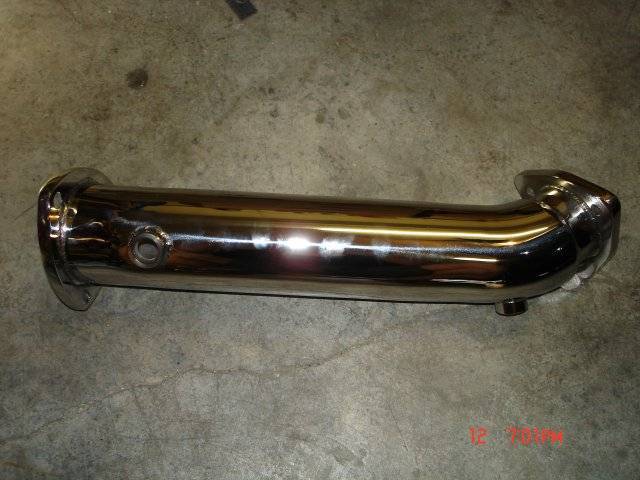

Evolution Racewerks Testpipe for 1996-2005 Audi B5 / B6 A4 1.8T

Audi Performance Parts: Evolution Racewerks Testpipe for 1996-2005 Audi B5 / B6 A4 1.8T (AU-EXH001P)

Product Features & Benefits

The factory (OEM) catalytic converter (Cat) is very restrictive on the exhaust flow in the exhaust system. Exhaust gas must pass through tiny "honeycomb" passages in the OEM cat which restrict flow and cause turbulence which in turn hinder performance. By removing the OEM cat with the Evolution Racewerks Test Pipe, power is unleashed!

• High grade 304 stainless steel material is used throughout our test pipe.  Everything from the flanges, o2 sensor bungs and even the included nuts and bolts are full stainless steel.
• 100% TIG welded with stainless steel welding rod.
• Mandrel Bent Piping
• Mirror polish or brushed finish available.
• 3" Diameter piping to match K03/K04 turbo turbine outlet.
• Smooth transitions to 2.5" to match aftermarket or factory downpipes.
• Welded both inside and outside of the flanges for strength and longevity.
• Includes hardware needed to install.
• Limited Lifetime Warranty.

The K03/K04 turbine (exhaust) outlet is almost 3" in diameter. That is why our test pipe features a 3" design that reduces to 2.5" (to bolt up to OEM and most aftermarket downpipe/exhaust systems). Also, we use a "flare" type reducer to reduce the size to 2.5" instead of the "step" type reducer (the "flare" type cost us more to manufacture though). The advantages of the "flare" reducer is that it has a nice smooth transition which causes less turbulence than the step type reducer, therefore producing more power. Also, having the transition as far as possible to the turbo improves performance as well.

The Evolution Racewerks Test Pipe's 3" to 2.5" design is superior over other test pipes that are 2.5" in diameter from inlet to outlet because the 2.5" test pipes will have a "step" right at the outlet. Since the OEM K03/K04 turbos have a turbine (exhaust) outlet of almost 3", the flange of the 2.5" test pipes will actually make a "step" right at the turbo outlet. This step acts like a wall against exhaust flow and when the exhaust hits it, major exhaust turbulence is created, at the worst spot possible, right at the outlet of the turbo. If you have a 2.5" test pipe, check it out. Look at the inlet flange and you will see a "ring" of carbon deposits on the flange. This is the "step" that the exhaust flow is hitting.

The Evolution Racewerks Test Pipe is completely constructed from quality 304 stainless steel and is polished to a mirror finish.  The pipe, flanges, o2 sensor bungs EVERYTHING is 304 stainless steel, even the welding rod used.  The piping is fully mandrel bent.  ER test pipes are 100% TIG welded for quality and strength.  The flanges are welded inside and outside to the pipe for added strength and extra longevity.

CAUTION: This product is intended for OFF ROAD USE ONLY. Use of this product upon public highways is prohibited.

Additional Details

Includes:

• Stainless steel Test Pipe
• Exhaust Gasket (cat/downpipe)
• Stainless Steel Nut (17mm)
• Stainless Steel Lock Washer (17mm)
• Stainless Steel Nut (12mm)
• Stainless Steel Bolt (12mm)
• Stainless Steel Lock Washer (12mm)
• Documentation
