Burger Motorsports N54 N55 N20 Meth Kit w/ 1 Gal. Std. Tank, Solenoid, Incl. FSB

BMW Performance Parts: Burger Motorsports N54 N55 N20 Meth Kit w/ 1 Gal. Std. Tank, Solenoid, Incl. FSB (BMSMETHSTD)

Product Features & Benefits

Make tremendous amounts of power on pump gas!

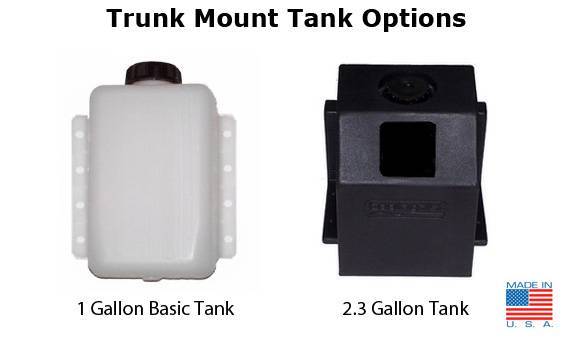

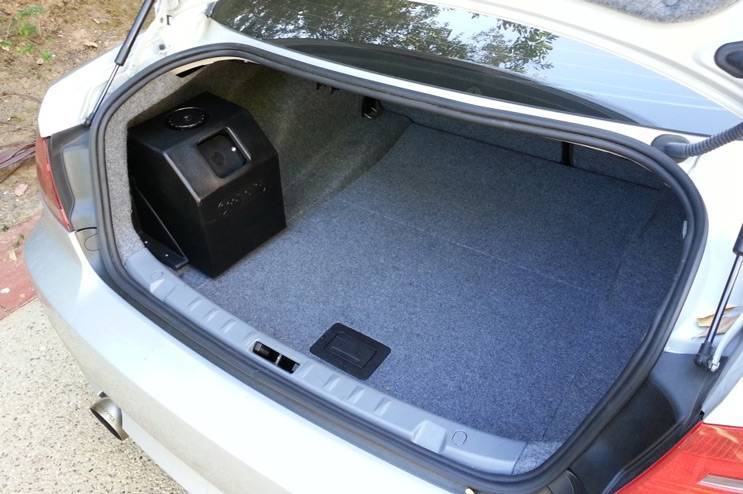

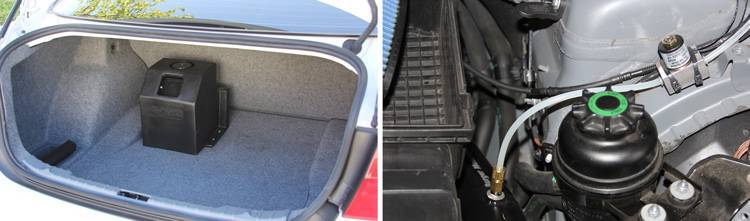

Methanol/Alcohol/Water injection, commonly referred to as "meth", allows you to make tremendous amounts of power on pump gas. The effect is similar to running 104 octane all the time, with additional cooling benefits allowing for more power than you could ever make on race gas alone. The methanol tank installs in the trunk and the fluid line is routed either through the interior or under the car to the engine bay. BMS offers a variety of tanks for your convenience but the 2.3g tank is considered the easiest to install and offers the best capacity. Depending on how often you race the car around expect to refill it every couple of weeks with methanol, denatured alcohol, or boost juice. First time installation typically takes around 1-2 hrs and is similar in difficulty to installing a radio amplifier in the trunk. Once installed the kits can generally be removed in less than 30 minutes.

Regardless of which tank you choose, BMS selected the 220psi methanol pump for its superior atomization and flow characteristics relative to less expensive 160psi pumps. This kit also features a high speed solenoid for precise control and a CM10 super atomizing injection nozzle perfectly sized for the 380-440whp range.

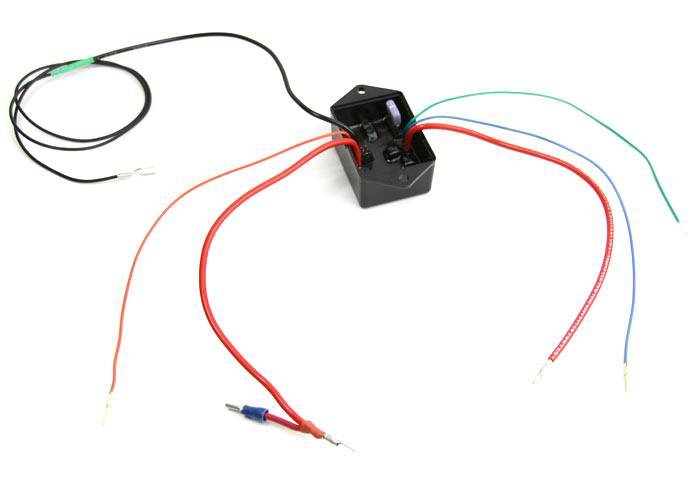

All kits integrate with the JB4 tuning system using the included FSB controller which allows for precise methanol solenoid mapping based on boost, throttle position, RPM, air intake temperature, advance, and other data elements available to the JB4 through its CANbus system. In addition the FSB feeds back an independent signal with pump loading and flow information allowing for safe and smooth progressive boost mapping. If the tank runs empty or flow drops for any reason the JB4 will safely back down performance to avoid knock. In addition methanol can be activated or disabled from the drivers seat and displayed in dash using your steering wheel control menu.

If you're using one an older BMS kit and want to upgrade to JB4/FSB integration you can purchase the FSB controller ala-cart. We also strongly suggest a solenoid with the FSB which is also available ala-cart.

The kits include everything needed for install except for a methanol bung. Depending on the model year of the vehicle you can add on one of the BMS meth mount elbows, a new charge pipe with a methanol bung preinstalled, or if you're on a budget you can simply drill and tap your OEM chargepipe for the 1/8" NPT injection nozzle

Additional Details

Fits:

BMW 1 Series
• 2011+ E87 135i
• 2011+ E82 135i
• 2008-2010 E82 Coupe 135i
• 2008-2010 E88 Convertible 135i
• 2011+ E82 1M

BMW 2 Series
• 2014+ N55 BMW F22/F23 M235i

BMW 3 Series
• 2011+ N55 BMW E90 E91 E92 E93 335i/xi
• 2012+ N55 BMW F30 F31 335i/xi

• 2006-2010 E90 Sedan 335i / 335xi
• 2006-2010 E91 Touring 335i / 335xi
• 2006-2010 E92 Coupe 335i / 335xi
• 2007-2010 E93 Convertible 335i / 335xi
• 2011-2013 E92 335is

BMW 4 Series
• 2014+ F32 F33 F36 Coupe 435i / 435xi

BMW 5 Series
• 2010+ F07 535i GT
• 2011+ F10 F11 535i / 535xi
• 2008-2010 E60 Sedan 535i / 535 xi
• 2008-2010 E61 Touring 535i / 535 xi

BMW 6 Series
• 2011+ F13 640 Coupe
• 2011+ F12 640 Convertible
• 2012+ F06 640 Gran Coupe

BMW X Series
• 2013+ X1 N55 TwinPower
• 2011+ X3 X5 X6 N55 TwinPower

• 2008-2010 BMW X6 xDrive35i

BMW Z Series
• 2009+ BMW Z4 sDrive35i

** This Racing Product Is For Competition Closed Course Use Only

 Methanol injection is intended for more experienced enthusiasts only.
