034Motorsport's X34 Carbon Fiber Full Intake System for B9 Audi S4/S5 3.0 TFSI 034-108-1029

Performance Parts for VW/Audi: 034Motorsport's X34 Carbon Fiber Full Intake System for B9 Audi S4/S5 3.0 TFSI (034-108-1029)

Product Features:

034Motorsport's X34 Carbon Fiber Full Intake System delivers improved power, sound, and acceleration to B9 Audi S4/S5 owners in a clean OEM+ package. Through extensive evaluation of the factory air duct and airbox designs, 034Motorsport's engineers were able to create a performance replacement that allows for increased airflow to the turbocharger and engine. The X34 Carbon Fiber Full Intake System offers measurable performance improvements, simple bolt-on installation, and unsurpassed fit and finish.

• Developed In-House by 034Motorsport's Engineering Team
• Fits Both Left and Right Hand Drive Configurations
• High-Quality Carbon Fiber Air Duct, Airbox, and Filter Tube Construction
• High-Gloss Epoxy Finish
• OEM+ Fit and Finish
• Dyno-Proven Horsepower Torque Gains
• Improved Airflow from Factory Airbox and Intake Tube
• Enhanced Engine Induction Sounds
• Improved Throttle Response
• Massive 5" Inlet Conical Pleated Cotton Air Filter
• Large-Diameter CFD-Optimized Carbon Fiber Filter Tube
• Reduced Intake Air Temperature
• Securely Installs Using Factory Mounting Grommets
• Simple, Straightforward Installation Instructions

The X34 Carbon Fiber Full Intake System for B9 Audi S4/S5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the development of this intake progressed, the X34 Carbon Fiber Full Intake System yielded measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

PEAK HORSEPOWER AND TORQUE

• Stock Intake: 401 Horsepower / 424 Foot-Pounds of Torque
• X34 Intake: 412 Horsepower / 425 Foot-Pounds of Torque

PEAK GAINS IN HORSEPOWER AND TORQUE

• Peak Horsepower Gain: 19 HP @ 4,950 RPM
• Peak Torque Gain: 20 FT-LBS @ 4,950 RPM

PRESSURE DROP REDUCTION

• Stock Intake: Peak Pressure Drop of 2.22 PSI at 6,500 RPM
• X34 Intake: Peak Pressure Drop of 1.64 PSI at 6,500 RPM

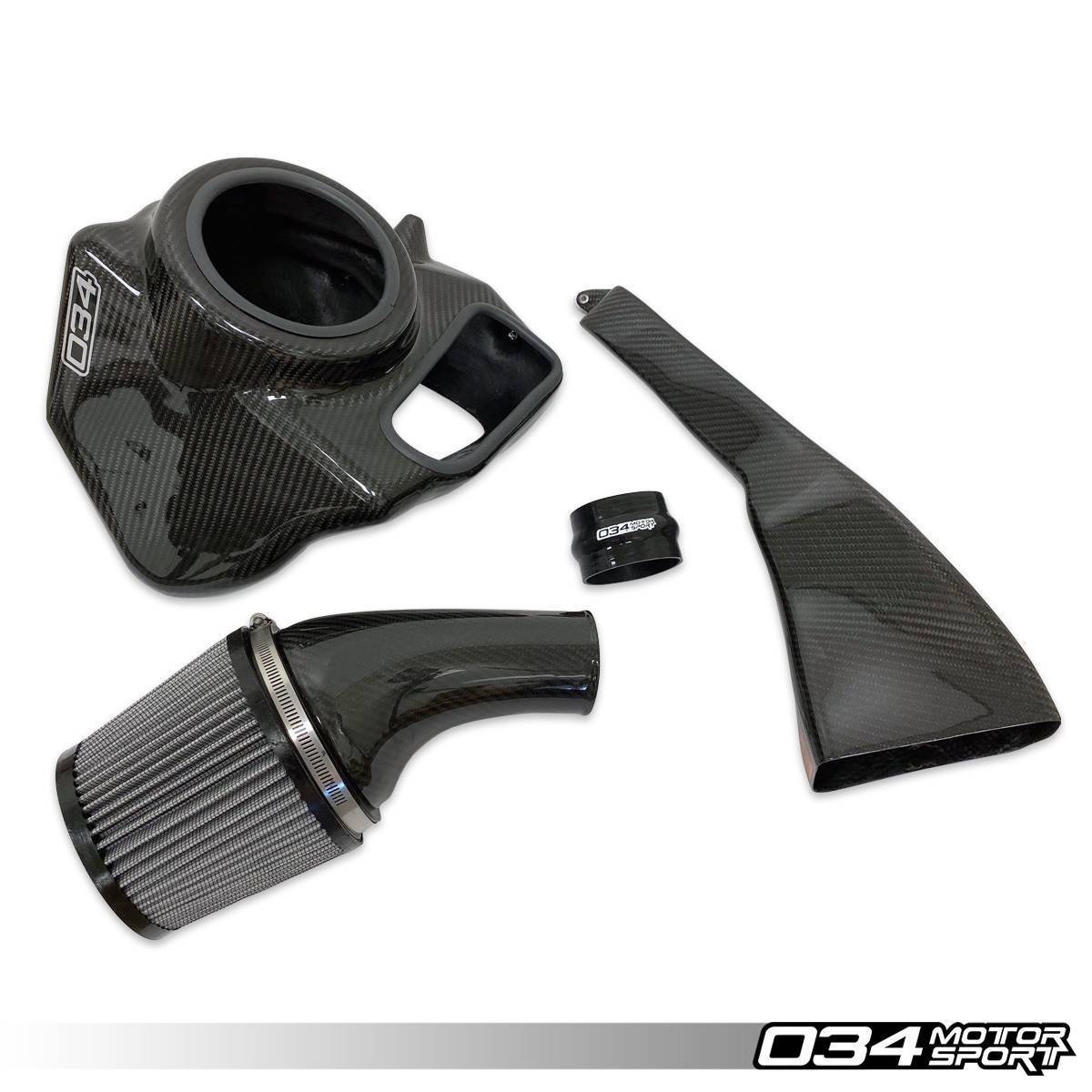

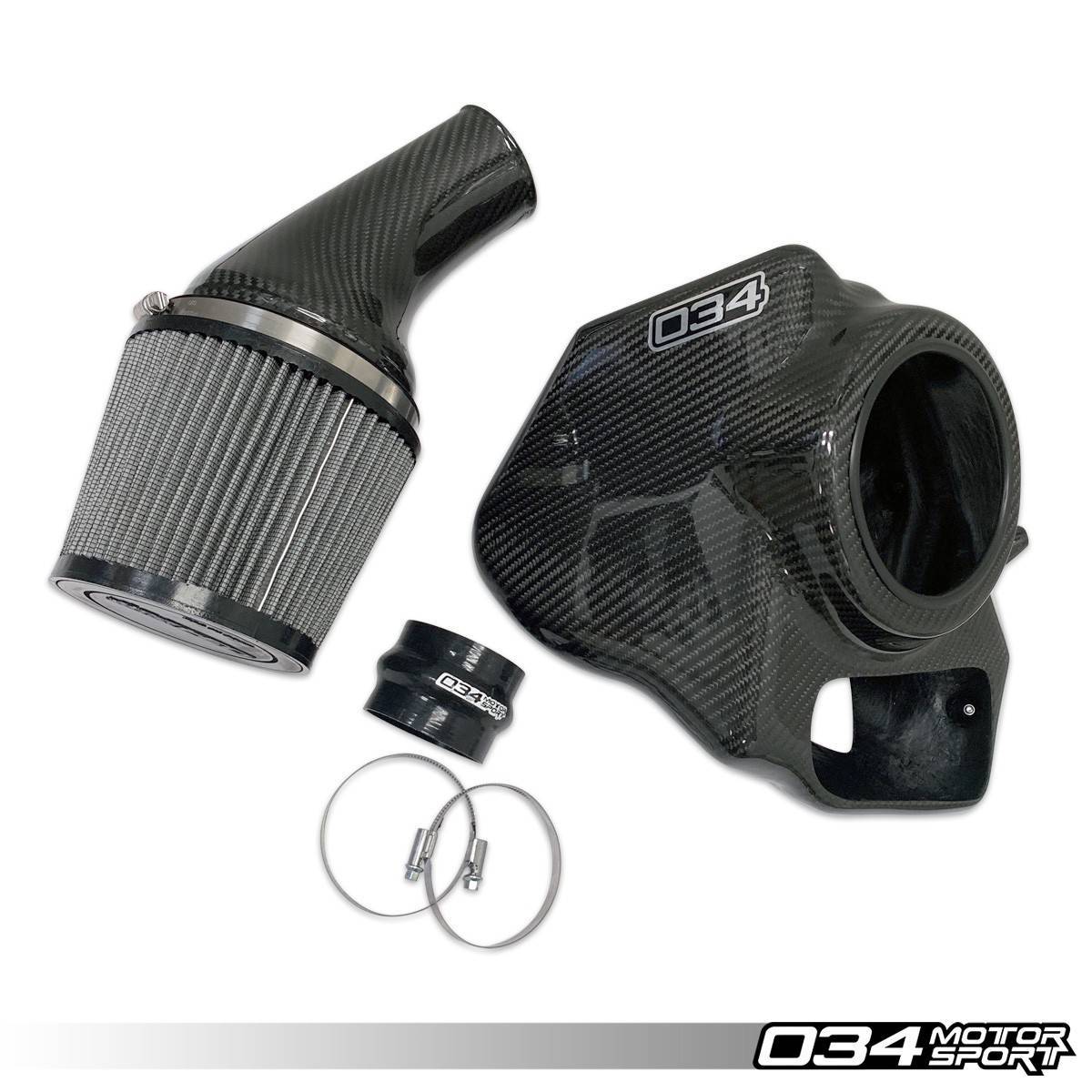

In the Box:

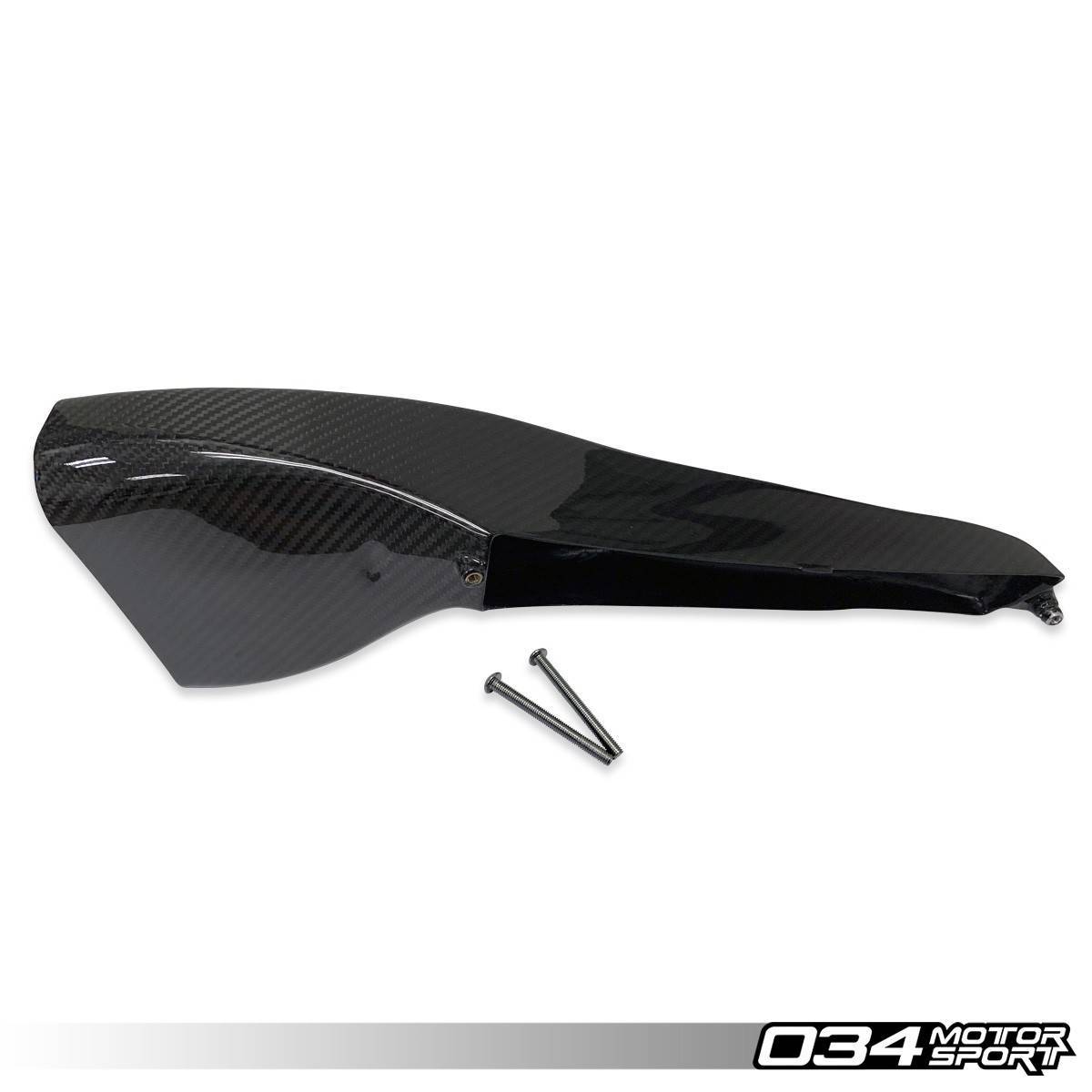

• X34 Carbon Fiber Intake Air Duct
• X34 Carbon Fiber Air Box
• X34 Carbon Fiber Inlet Pipe
• X34 Silicone Hump Hose 2.75"
• 034Motorsport 5" Inlet Air Filter
• Authentic 034 X34 Hologram Decals
• Button-Head Cap Screws M5 x 0.8 x 25mm (x3)
• Button-Head Cap Screws M5 x 0.8 x 50mm (x2)
• Nylon Locking Nuts M5 x 0.8 (x3)
• Worm Drive Hose Clamps M60x80 (x2)

Fitment:

• Audi S4 2018-Present B9 3.0 TFSI
• Audi S5 2018-Present B9 3.0 TFSI
