034MOTORSPORT X34 CARBON FIBER COLD AIR INTAKE for B9 AUDI S4/S5 3.0 TFSI 034-108-1013
Description
Performance Parts for VW/Audi: 034MOTORSPORT X34 CARBON FIBER COLD AIR INTAKE for B9 AUDI S4/S5 3.0 TFSI (034-108-1013)
Product Features:
- Fits Both Left and Right Hand Drive Configurations

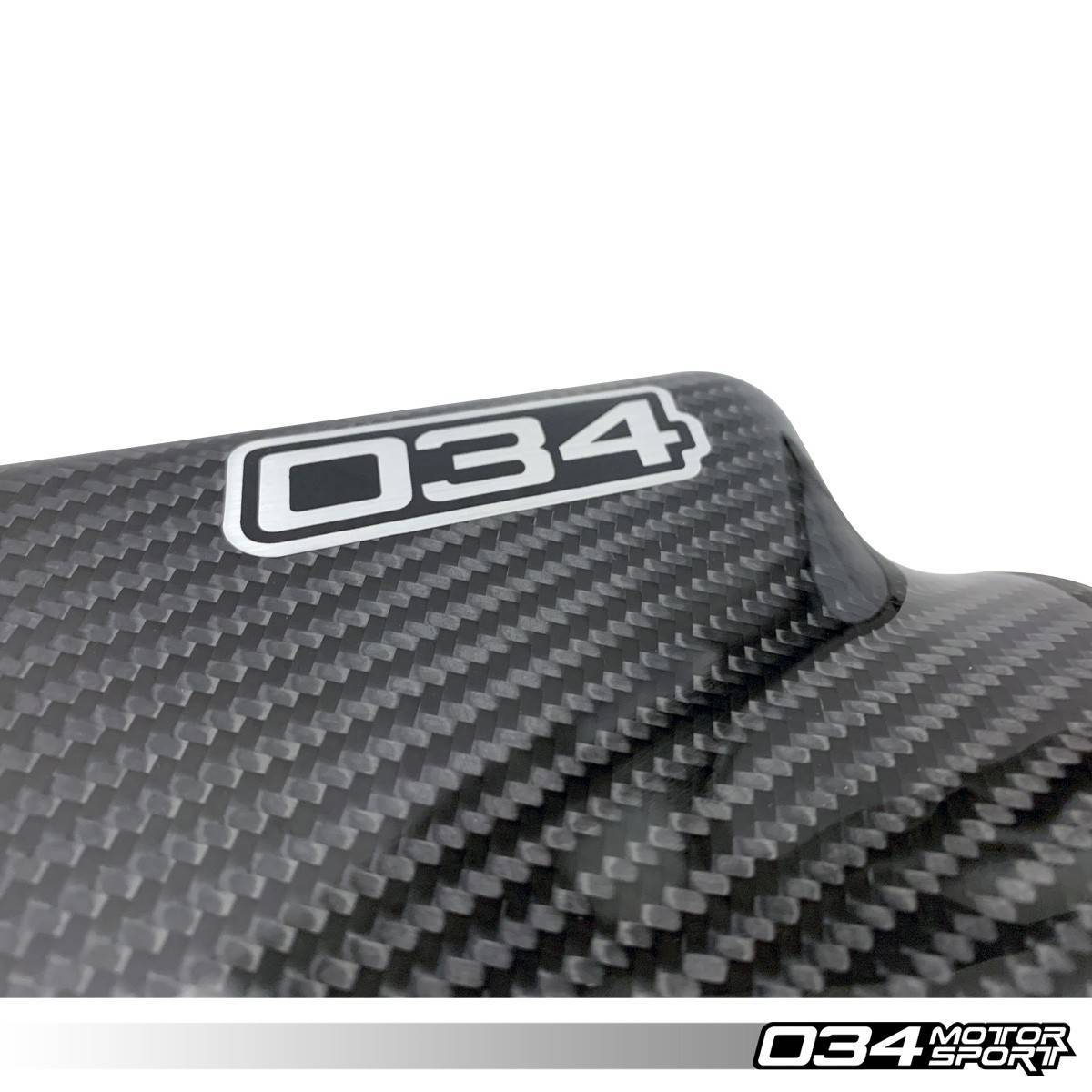

- High-Quality Carbon Fiber Airbox and Filter Tube Construction
- High-Gloss Epoxy Finish
- OEM+ Fit and Finish
- Dyno-Proven Horsepower Torque Gains
- Improved Airflow from Factory Airbox and Intake Tube
- Enhanced Engine Induction Sounds
- Improved Throttle Response
- Massive 5" Inlet Conical Pleated Cotton Air Filter
- Large-Diameter CFD-Optimized Carbon Fiber Filter Tube
- Reduced Intake Air Temperature
- Securely Installs Using Factory Mounting Grommets
- Simple, Straightforward Installation Instructions
Significant effort went into developing this comprehensive performance intake solution for the turbocharged 3.0 TFSI engine found in the latest generation B9 Audi S4/S5. Subsequently, the X34 Cold Air Intake System offers discerning enthusiasts measurable increases in horsepower and torque, sporty induction and turbocharger sounds, and a beautiful carbon fiber airbox and inlet pipe design.

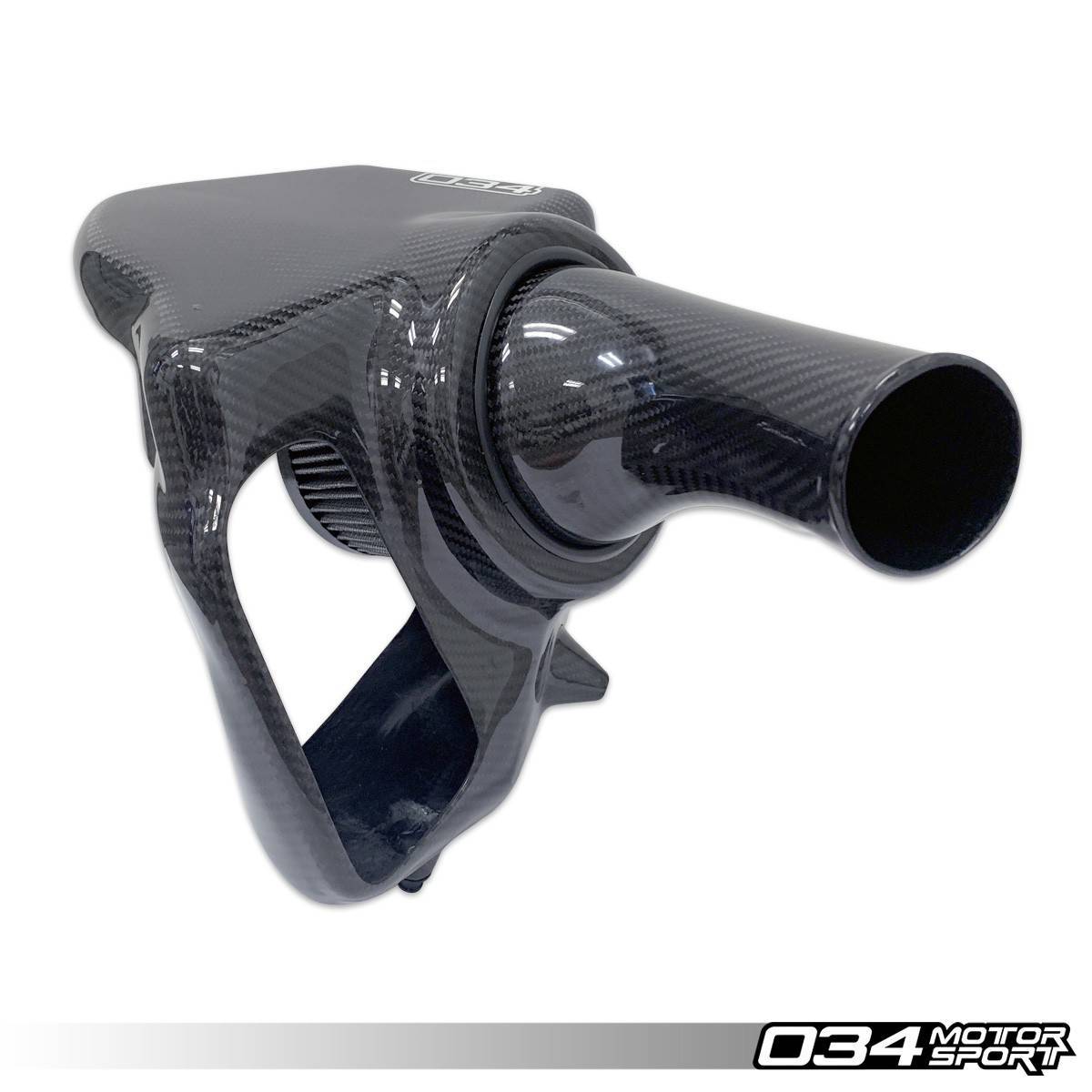

Throughout the development process, multiple designs were modeled, prototyped, and tested - all to ensure that the X34 Cold Air Intake System delivers measurable performance benefits and superb fitment. The result is a partially-enclosed airbox which uses the factory fresh air inlet duct and heat shield, while housing a massive 5" inlet conical air filter, and a matching CFD-optimized carbon fiber filter tube.

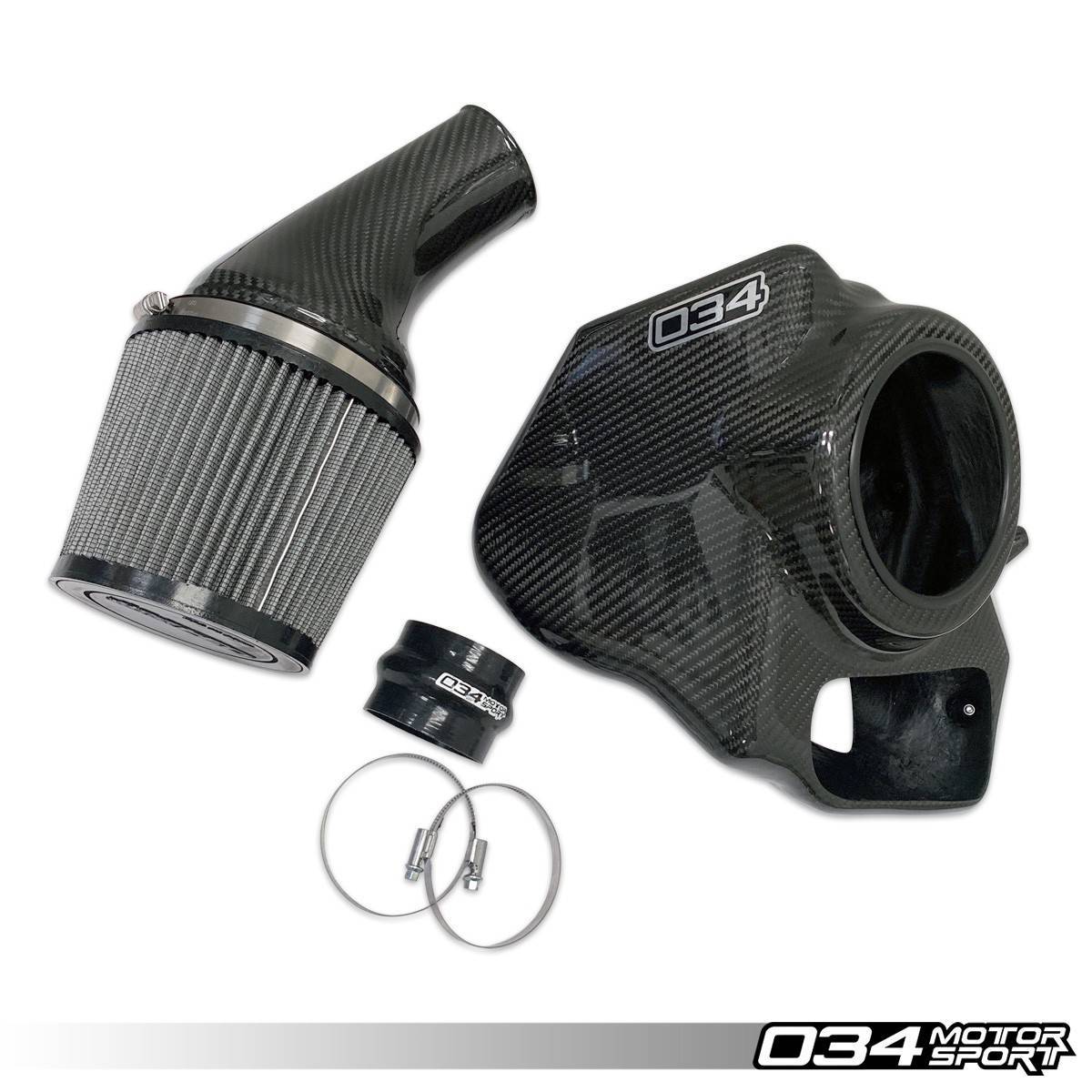

WHAT'S INCLUDED
- X34 Carbon Fiber Air Box
- X34 Carbon Fiber Inlet Pipe
- X34 Silicone Hump Hose 2.75"
- 034Motorsport 5" Inlet Air Filter
- Authentic 034 X34 Hologram Decal
- Button-Head Cap Screws M5 x 0.8 x 25mm (x3)
- Nylon Locking Nuts M5 x 0.8 (x3)
- Worm Drive Hose Clamps M60x80 (x2)

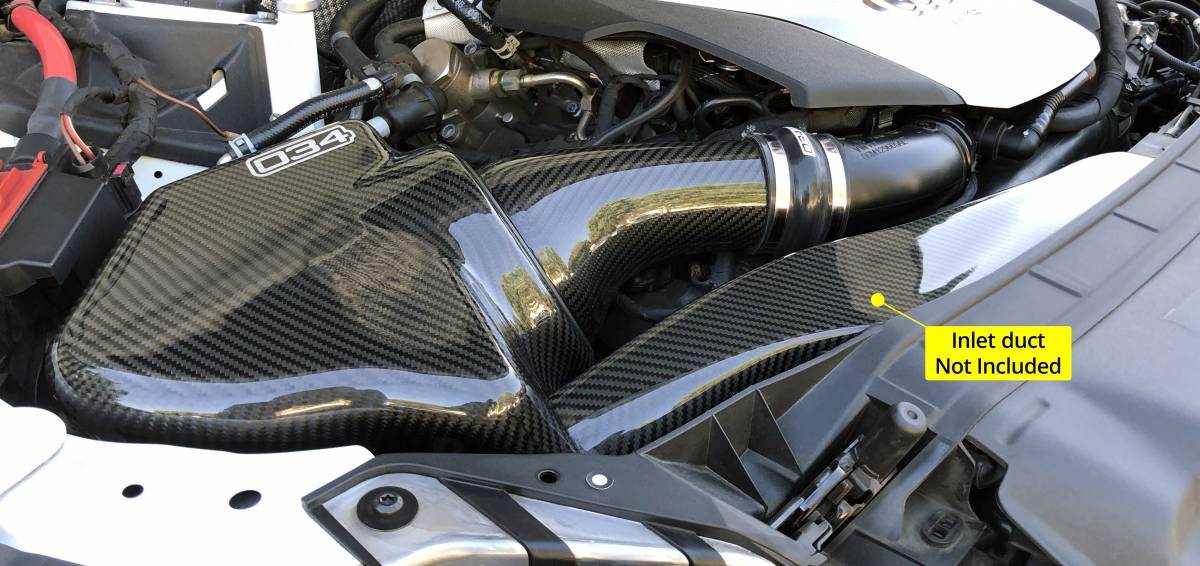

- X34 Carbon Fiber Inlet Air Duct Not Included
Emissions Disclaimer: Not for use on emissions-controlled vehicles in California.
DYNO-PROVEN PERFORMANCE GAINS
The X34 Carbon Fiber Cold Air Intake System for B9 Audi S4/S5 was engineered with performance in mind, and is a free-flowing replacement for the factory airbox and turbocharger inlet hose. As the development of this intake progressed, the X34 Cold Air Intake System yielded measurable reduction in pressure drop at the turbo inlet compared to the factory airbox, with a corresponding increase in horsepower and torque throughout the powerband.

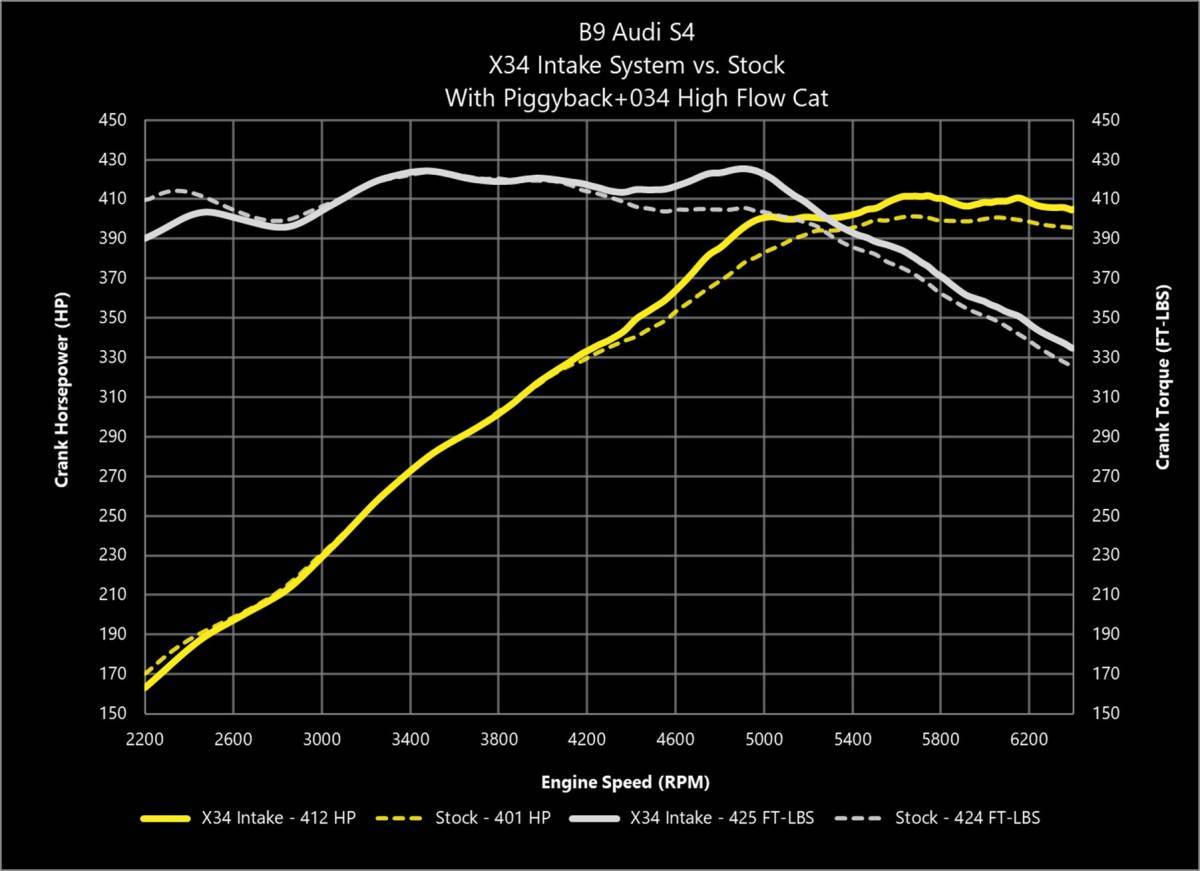

PEAK HORSEPOWER AND TORQUE
- Stock Intake: 401 Horsepower / 424 Foot-Pounds of Torque
- X34 Intake: 412 Horsepower / 425 Foot-Pounds of Torque

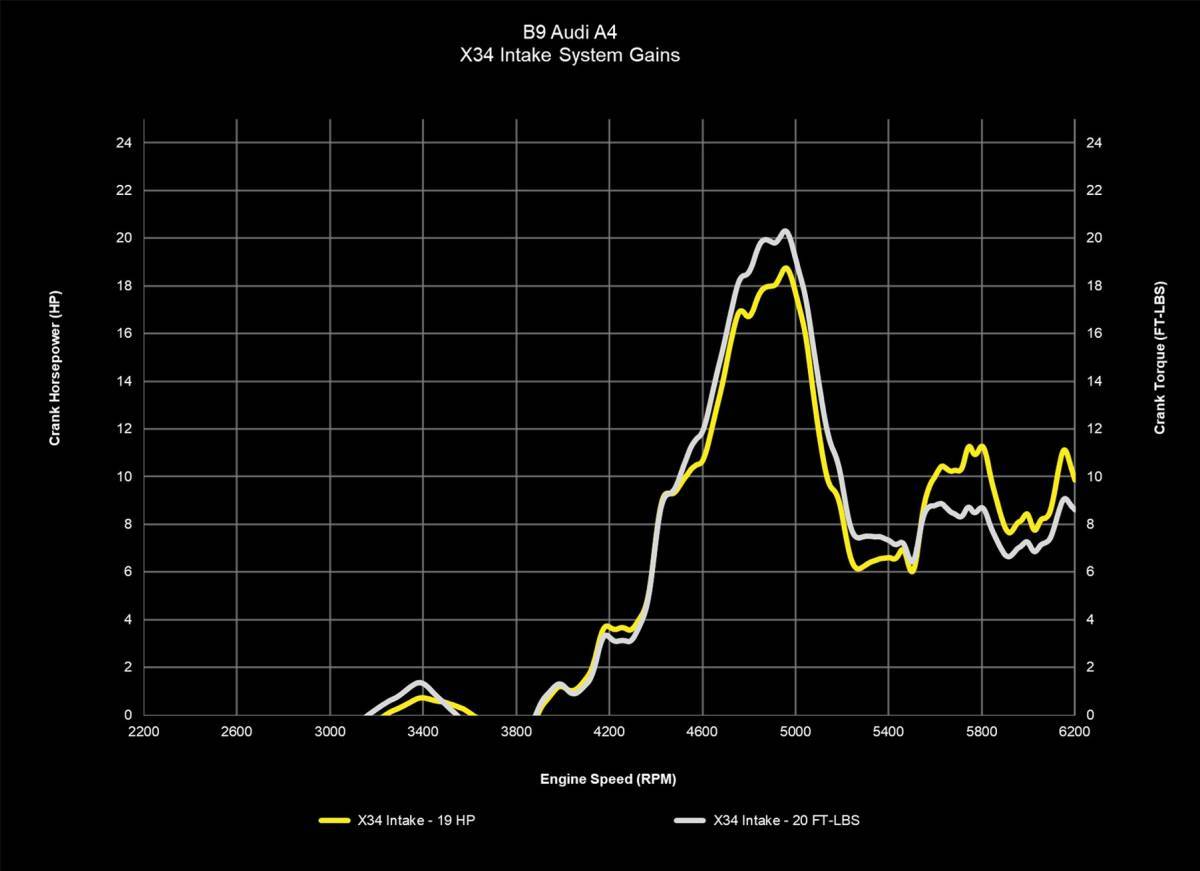

PEAK GAINS IN HORSEPOWER AND TORQUE
- Peak Horsepower Gain: 19 HP @ 4,950 RPM
- Peak Torque Gain: 20 FT-LBS @ 4,950 RPM
PRESSURE DROP REDUCTION
- Stock Intake: Peak Pressure Drop of 2.22 PSI at 6,500 RPM
- X34 Intake: Peak Pressure Drop of 1.64 PSI at 6,500 RPM
Fitment:
- 2018+ AUDI B9 S4 3.0 TFSI
- 2018+ AUDI B9 S5 3.0 TFSI
10% OFF Installation
Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.
