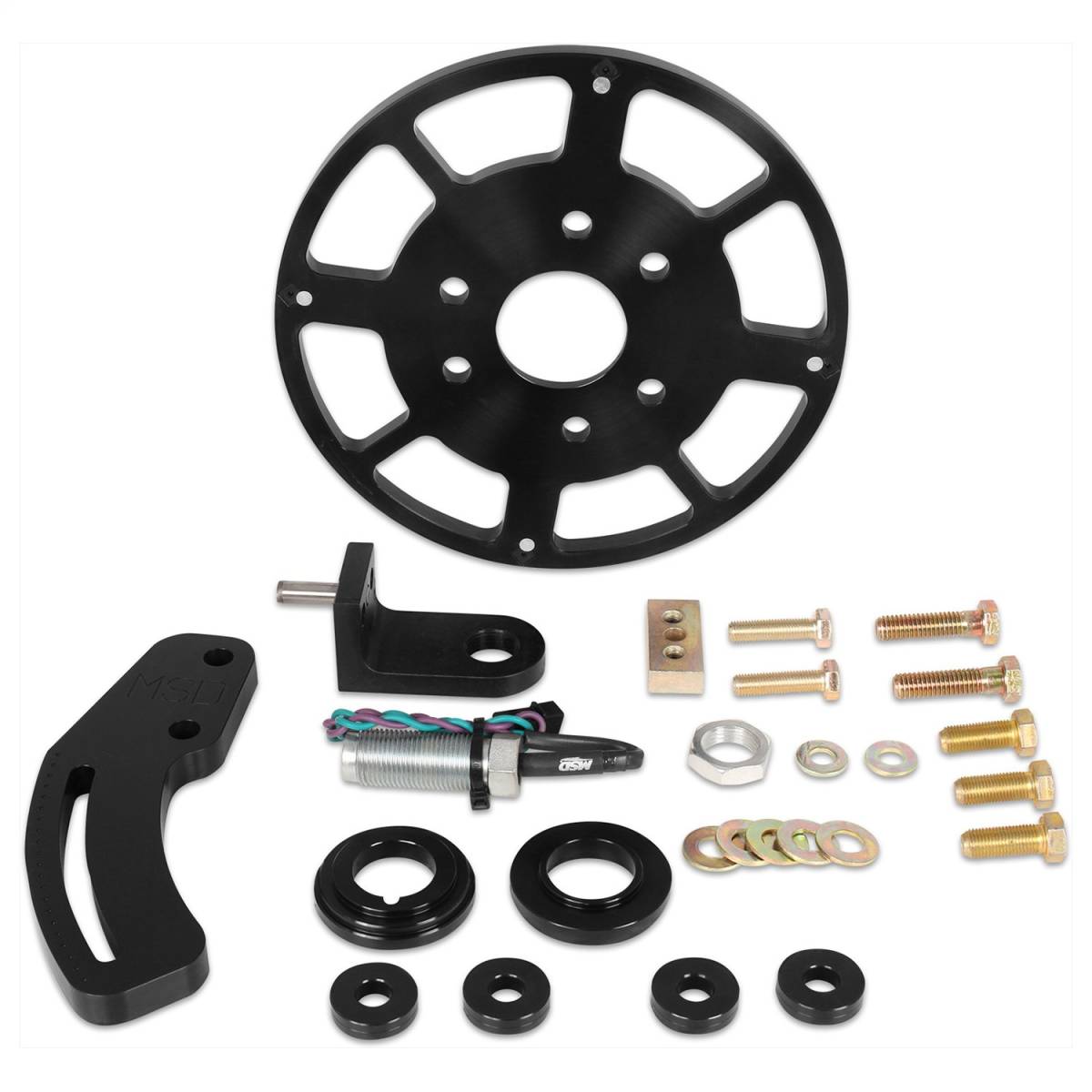

MSD Crank Trigger Kit - 86153

Ignition Crank Trigger Kit

86153
Crank Trigger Kit; Fits Small Block Chevy; For Use w/MSD 6/7/8 Series Ignition/Timing Access.; 8.0 in. Diameter; Cannot Be False Triggered; Billet Alum. Trigger Wheel; Black;
Shipping: Available To Order
Pricing: $566.00

Qty:
Free Shipping

Description

For a long time, racers have known that one of the best things to do to an engine to improve its performance is to stabilize the ignition timing. The MSD flying magnet crank trigger system does exactly that by using magnets embedded in an aluminum wheel. The MSD flying magnet crank trigger uses four magnets secured in the aluminum trigger wheel that pass by a stationary non-magnetic pick-up to trigger the ignition. This flying magnet design produces accurate trigger signals and the non-magnetic pick-up cannot be false triggered. Each flying magnet crank trigger includes a two-piece mounting bracket for the non-magnetic pick-up that in most cases will work on either the passenger side or driver's side of the engine (the SB Chrysler and SB Ford brackets mount on only one side). The adjustable bracket provides a wide range of timing adjustment and spacers are included. These systems will trigger MSD 6, 7, 8 and 10 series ignitions and all MSD timing accessories.

Extended Information

Country of Origin:  US
Remanufactured Part:
Emissions Code ("1" - Legal in US, "2" - Not Legal in CA, "3" - Off-Road Use Only)  3

10% OFF Installation

Save 10% off installation if you're a local to Las Vegas, NV by visiting our local shop, Eurotek Tuning. Call 888-967-5634 to make an appointment today.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 2.7 lbs.
  • W9.6000” x H2.3000” x L12.7000”
  • Free Shipping
  • Available To Order
